Double Line Smd 3014 Flexible Led Strip Light 240 Led/meter 1200 Leds/roll
  • Double Line Smd 3014 Flexible Led Strip Light 240 Led/meter 1200 Leds/roll
  • Double Line Smd 3014 Flexible Led Strip Light 240 Led/meter 1200 Leds/roll
Double Line Smd 3014 Flexible Led Strip Light 240 Led/meter 1200 Leds/roll
Double Line Smd 3014 Flexible Led Strip Light 240 Led/meter 1200 Leds/roll

Double Line Smd 3014 Flexible Led Strip Light 240 Led/meter 1200 Leds/roll

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
Flexible LED strip lights are a new generation innovative lighting product with which spectacular lighting effects that can be created in an easy way. Please check more detail by our product list. They offer many advantages including small dimension, low heat generation, higher energy efficiency, more saturated colors and easily controllable. As you will notice there is countless application for LED stripe lights.

Main features SMD 3014 flexible LED strip with 240LEDs/meter
- SMD 3014 LED
as light source
- Environmental friendly, Energy saving,
- Uniform colour, Dimmable
- Cut to length for easy usuage
- Standard 5m per roll, customized length are available
- Suitable waterproof type to meet your different application area

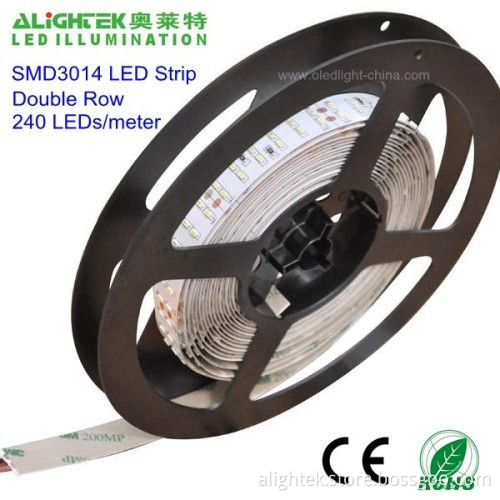

Photo of IP20 SMD3014 flex LED light strip


Main Parameter of 24vDC LED strip 3014
LED TYPE Top SMD3014 Epistar LED
Q'TY PER METER 240pcs/meter
POWER CONSUMPTION Max 28.8 watts (5meters)
INPUT VOLTAGE 24v DC
DIMENSIONS 15 mm Wide, 5m length
LUMEN PER LED 10 ~ 12 LM
DRIVER for 5meters 150 watts 24V Power Supply Required (constant voltage)
IP RATING IP20, IP65, IP68
BEAM ANGLE 120*degrees
VIEWING ANGLE Adjustableby Mounting Position
DIMMABLE Yes
LIFESPAN >50,000Hours
STANDARDS CE,RoHS
HOUSING Copper PCB
CONNECTOR DC connector
OPTIONAL COLOUR White,WarmWhite, Cool White, Red, Green, Blue, Yellow

Dimension Drawing of 120pcs/meter FLEX 3014 SMD LED strip


Check below picture to choose the suitable waterproof veriosn LED strip 3014 for your application.




Common connectors of 3014 LED ribbon light flex

Alightek offers a full range of Flexible LED strip and accessories, which including 3528 LED tape lights, 5050 LED strip, 5050 RGB LED strip, 5050 RGBW LED strip, 3014 (side-view) LED ribbon and 335 side illumination LED strip and also the NEW SMD 2835 LED stripe lights.

How to choose the right LED power supply for LED strip lights?
The required power supply depends of the choice of LED strip and their total lenght.
Both 12vDC and 24vDC LED strips are available. The main advantage of 24vDC flex LED strip is that you have double the quantity of LEDs for the same current and power consumption than with a 12V LED strip light. Obviously, since the LED quantity is doubled, the light output is also twice as strong.

The second criterion is the total length which determines how much output power (watts) that your LED driver must be capable of delivering. The currents or power ratings are a standard specification for each LED ribbon and can be found in our data sheets.

Also, it's always wise to select the LED strip lights' power supply that slightly overrate (approx 20%) your power supply for safety reasons.
