Side View Smd3014 Led Strip Light Tape 96leds/meter 12vdc 8mm Pcb

Side View Smd3014 Led Strip Light Tape 96leds/meter 12vdc 8mm Pcb

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Features - Side-emitting SMD3014 LED ribbon light

It's an ideal replacement of SMD335 side view LED strip
Advantages compare with SMD335 side-view LED strip as below;

1) Lower Cost,the SMD3014 can be much cheaper than SMD335.

2) "STRONG LEDs" with the best flexibility & performance,

3) High Brightness 6 ~ 7LM PER LED

Main Specification - Side illumination SMD3014 LED tape light

LED TYPE	Side-view SMD3014 LED Epistar
Q'TY PER METER	96LEDs (60LEDs/m available)
POWER CONSUMPTION	Max 10.8/meter
INPUT VOLTAGE	12vDC
DIMENSIONS	8mm Wide, 5m length
LUMEN PER LED	6 ~ 7 LM
DRIVER FOR 5 METERS	70 watts 12V Power Supply Recommended
IP RATING	IP20
BEAM ANGLE	120*degrees
VIEWING ANGLE	Adjustableby Mounting Position
LIFESPAN	>50,000Hours
STANDARDS	CE, RoHS
HOUSING	Copper PCB
CONNECTOR	DC connector and other kind OF accessories
OPTIONAL COLOUR	White, WW, CW, Red, Green, Blue, Yellow, RGB

Advantages of this side view SMD3014 LED stripe:
Below is the testing between the Side Illuminating 3014 SMD flex LED ribbon and the SMD335 LED strip.

We proved it can be reel with the Extreme slim tube without any damage to the side view SMD3014 LEDs. when we make both of them roll onto the 9.5mm OD Aluminum tube,t he SMD3014 LEDs can be 100% light on, SMD335 only a few LEDs could be turn on.This is a great advantage that woud suitale for some special usage.

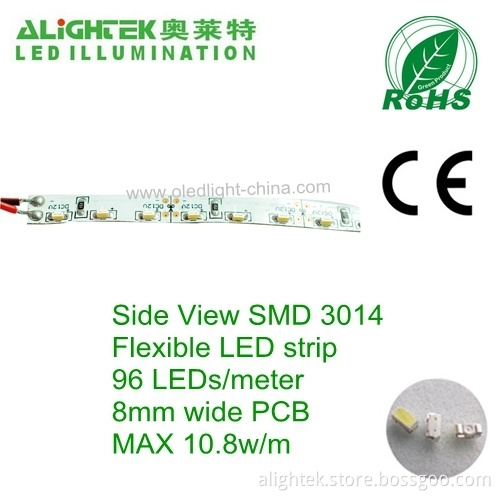

Photo - Side illumination SMD3014 flexible LED strip light

More about our Factory & Equipments
Alightek owns over 6, 600 Square Meters workshop which includes R & D section, Production & Assembly line , Aging Test center and so on. We introduced world-class Full-automatic High-speed and High-precision SMT machines, DIP & Reflow Soldering assembly lines,several Automatic manufacture lines and Aging lines, as well as dozens of advanced testing equipments. It could ensure us to have the enough Production Capacity to meet all customers' willing on timely shipping. Also it makes ALIGHTEK could deliver bulk orders with more stable quality.
