48w 50w Ip65 Outdoor Waterproof Round Led Rgbw Floodlight High Power
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Product brief description of Round LED RGBW floodlight

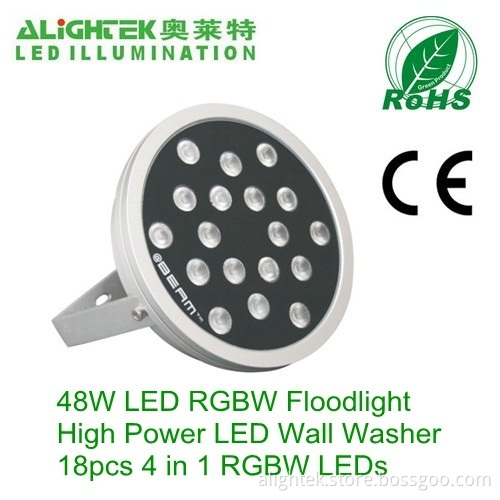

Actual photo of this RGB LED light fixtures
Dimensional Diagram of this LED RGBW floodlight
Assembly wiring diagram for Round RGBW led flood light
~~~ Please refer the below connection chart for two or more groups,
numberous groups of led light fittings could be controller if use this way of connection.
Notes:
1.Green and Eco-friendly high Power LED as the light source.
2.Outer casing could be corrosive resistance, good designed & beautiful aluminum housing
3.Outdoor waterproof IP65 Grade, good light transmittance
4.3MM Strong tempered glass as the cover which can be better protection and anti high temperature…
5.Optimized LED lens could has the better light projector effect.
Assembly wiring diagram for high Power rgbw led flood light
One group connection, that can be controlled by one RGBW LED controller and one power supply.
Key parameters of High Power RGBW LED Floodlight
Assembly wiring diagram for high Power rgbw led flood light
One group connection, that can be controlled by one RGBW LED controller and one power supply.
Key parameters of High Power RGBW LED Floodlight
| ItemNumber | AL-FL-RGBW02 |
| Colour (CCT Range or Wavelength) |
W:6030K-7030K |
| R:625-635nm | |
| G:521-528nm | |
| B:463-468nm | |
| RGBW:3690-3890nm | |
| Total PowerConsumption(±10%) | 48±10% watts |
| OperatingVoltage | 24v DC |
| ElectricalCurent(±10%) | 2A |
| LED Version | High Power RGBW LED |
| Power oflight-emitting diode | 4 Watts |
| LED Q'ty | 18pcs |
| Emitting beamangle | 25 or 38 degree |
| Lumenat each colour (±10%) | W:505lm |
| R:130lm | |
| G:395lm | |
| B:75lm | |
| RGBW:1060lm | |
| PF | 1 |
| Projectiondistance | 10 to 15 meters |
| Diameter ofthe light fitting | 200 mm |
| N.W | Two KGS |
| G.W | 2.5 KGS |
| Inner Boxsize | 243x243x190mm |
| Outer cartonsize | 800x260x400mm |
| Quantity eachcarton | 6pcs per carton |
Actual photo of this RGB LED light fixtures
Dimensional Diagram of this LED RGBW floodlight
Assembly wiring diagram for Round RGBW led flood light
~~~ Please refer the below connection chart for two or more groups,
numberous groups of led light fittings could be controller if use this way of connection.
Notes:
First of all, kindly be carefully read the instruction
Must be turn off the electrical power source before installing flood light fittings.
Make sure the LED Power supply is right one for operate the lighting fixtures.
Ensure the switch onto the lamp is off before connecting to the high voltage power source.
