30w Led Flood Light Projector
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Features of 30W LED Flood light projector
LED Driver Parameters
Light fixture Parameters
Gas station LED floodlight dimension
Three Installation Methods as below,
The Flood Light Distribution and AAI Figures.

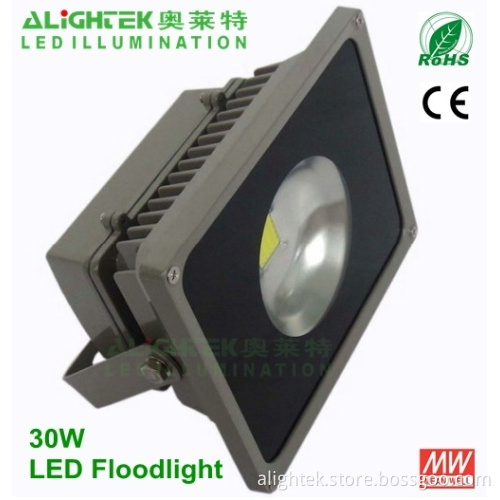

This 30W LED Floodlight made with the American branded Bridgelux LED chip and Taiwan Branded Mean Well LED Driver. Pleasa kindly check much more advantages about it by the following contents.
The important parts's material of Alightek used for the 30W LED Flood light projector
The important parts's material of Alightek used for the 30W LED Flood light projector
LED Driver Parameters
| Power | 30W |
| Input Voltage/Frequency | 85-265VAC/ 50-60Hz |
| Input Current(Typ) | 0.5A MAX |
| Output Voltage | 30-36V |
| Output Current | 870MA |
| Efficiency(Typ) | 86% |
| Power Factor(Typ) | PF over than 95 |
Light fixture Parameters
| LEDChips QuantityLED | 1 Piece |
| System Consumption | 30W |
| LED Luminous Efficiency | 80-100Lm/W |
| Color Temperature | 2700K - 7000K |
| Lamp's Initial LuminousEfficiency | ≥70Lm/W |
| Lumen Maintenance | 70%(50000Hrs) |
| Color Rendering Index | Ra≥80 |
| Beam Angle | 120°or 60° |
| Operating Temperature | -40℃ +45℃ |
| Storage Temperature | -40℃ +70℃ |
| IP Grade | IP65 |
| Life-span | 50000Hrs |
| Materials | Aluminium |
| Appliance Class | ClassⅠ |
| The color of the lamp shell | Black/Silver |
| Power line | 1 mm2 The three wires |
| Packing for total 4pcs 30W flood lightfittings | |
| Lamp inner package size | 165*265*235(mm) |
| Outer Carton package size | 280*345*495(mm) |
| Packing Weight of the radiator | 10.0KGS |
| Net weight | 2.3KGS |
Gas station LED floodlight dimension
Three Installation Methods as below,
The Flood Light Distribution and AAI Figures.
Applications:
Widely used indoor and outdoor commerciallighting as Wall wash lighting,swimming pool lighting, watercascadeslighting, building frontage lighting, parcking garagelighting,landscaping lighting, parking lot lighting, illumination forhouse,shopwindow , display hall, commodity excite exhibition roomandbillboard; Gymnasiums lighting, factory lighting, advertisingboardlighting, Garden lighting etc.
