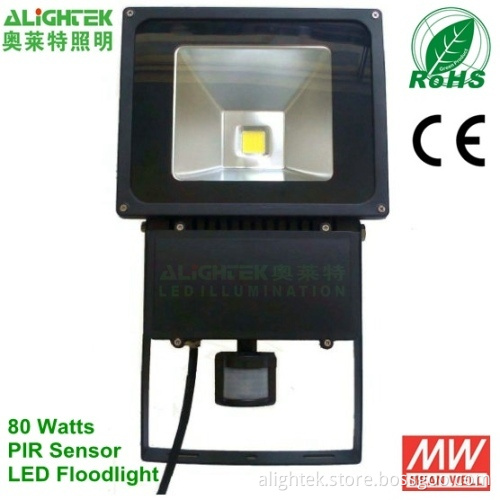

Description of 80W PIR sensorLED FloodLight

Human body infrared sensor LED floodlight is a new type of LED illumination light source, developed on the basis of the traditional flood light. Comparing with the traditional floodlight, it bears the advantages of high thermal conductivity, light failure is less, uniform color beam, no double image, much more energy saving, environmental protection, much longer lifetime etc… the products adopt constant current & constant voltage control system, power efficiency is very high. Secondly, it is energy-saving model while the lighting fixtures under the normal environment, when the human body go through the infrared photosensitive area (refer to the technical parameters), and the sensor receives the human body signal, the sensor led floodlights would connect the power supply and turn the lights on; delay a while later, if it did not receive the body signals again, the lamps and lanterns would shut down automatically, then it keeps energy saving.

Features of 80W PIR sensor LED floodlight

1. High efficiency & energy saving. Under the condition of the same illumination, it saves more than 70% energy compared with the traditional flood lamp.

2. Long life span, adopt semiconductor chip as the light resource, the lifetime is over 50,000 hours.

3. No UV & IR. It won't distribute ray radiation

4. Eco-friendly, No Hg & Xe ,or other harmful element. Recyclable, also it won't generate EMI.

5. High performance with external constant current drivers,no stroboscopic, good for eyesight protection;

6. Patent integrated light sources, high quality Bridgelux LED chip, high Light effects, high color rendering index.

7. Advanced heat conduction design, integration of the advanced die-casting forming, less contact resistance, high cooling efficiency

8. Bears infrared body sensing feature;

9. Protection level reaches IP65.

LED Driver Parameters

Power	80W
Input Voltage/Frequency	85-265VAC/ 50-60Hz
Input Current(Typ)	1.0A MAX
Output Voltage	30-36V
Output Current	2.5A
Efficiency(Typ)	86%
Power Factor(Typ)	PF ≥ 95

Light fixture Parameters

LEDChips QuantityLED	1 Pcs
System Consumption	80W
LED Luminous Efficiency	80-100Lm/W
Color Temperature	2700K - 7000K
Lamp's Initial LuminousEfficiency	≥70Lm/W
Lumen Maintenance	70%(50000Hrs)
Color Rendering Index	Ra≥80
Beam Angle	120°or 60°
Operating Temperature	-40℃ +45℃
Storage Temperature	-40℃ +70℃
IP Grade	IP65
Life-span	50000Hrs
Detection distance 25℃	4-6M(<25℃)
Time-delay	5sec ~ 10min
Detection range	120°
Rated load	300w
Materials	Aluminium
Appliance Class	ClassⅠ
The color of the lamp shell	Black/Silver
Power line	1mm²The three wires

Sensor LED floodlight distribution curve

The effective average illumination chart

NOTE: The above chart are the light fixtures' average illumination under different projection distance.

Installation Instructions of 80 Watts induction LED floodlight

1. Make the flood light fixtures Installed on the fixed frame (wall) on the lamp bracket and fixed frame with the three screws

2. Working and Storing in the normal temperature.

3. When installing the products, the point of connecting of wires must be closed very well to avoid the leakage of electricity

4. Must take the right waterproof protection when connect the outside power wires.

5. Prohibit violating any fire protecting rules when using it.

6. Please find a professional electrician when installing. And the ways of connecting of three wires is that Brown is live wire, Blue is null line, Yellow is earth wire.

Applications:

Billboard lighting,building exterior landscape lighting,high-pole lighting,road lighting,gardens lighting, etc.

This PIR LED Flood light Fittings dimension

Instruction for maintaining and repairing

1. The power must be cut off before maintaining.

2. Regularly clean the glass of the floodlights to ensure the good light transmittance

3. Periodically clean the housing and radiator to make sure the good performance of heat dissipation.

4. Forbid to use water or other corrosive liquid to clean, must use dry cloth.
5. Using the screwdriver open the rear cover and take out of the driver to change a new one.
And make connection of the wires to AC driver, please follow: Brown to connect "L", Blue to connect "N", Yellow to connect "", And the red or white wires of DC connect the positive pole of driver, then the black wire connect the negative pole of driver. Don't mix the positive pole and negative pole.

Packing details for total 2pcs sensor flood light fittings

Lamp inner package size	160340520(mm)
Outer Carton package size	325355545(mm)
Packing Weight of the radiator	12.46 KGS
Net weight	5.43 KGS

Note

1. Any wire damage should be replaced by qualified professional person to avoid dangerous occurs.

2. Please cut down the input power supply once the lamp works abnormally.

3. Please take measures of lightning protection, and ensure the Input voltage is stable.

4. Please put the lamp under the dry, ventilated and clean circumstance, and clean and maintain regularly.

5. Don't disassemble by yourself; avoid the electric shock as there is high voltage inside the lamp.

Warranty for this PIR LED flood light fitting.

ALIGHTEK offer 3 years warranty for the MeanWell driver and two years for the whole fixtures.

Remark: The warranty on the base of right storing way, right installing method, right using way, right maintaining way. During the warranty time, we would repair or replacing parts or replacing the whole products according the detailed situation. And we'll charge the customers some material fee and labor cost if the product out of our warranty time. Please read the instruction carefully before using the product.
