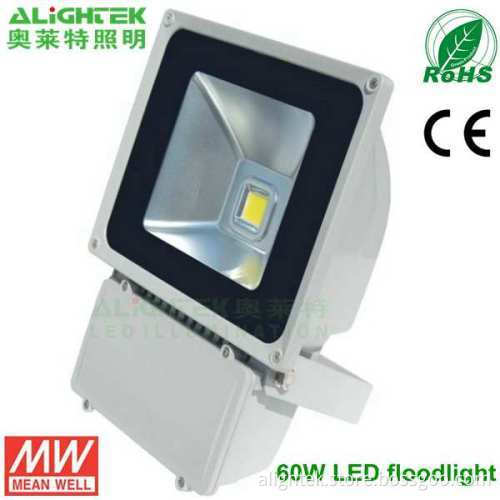

Features of wall mounted LED Floodlight 60W
LED floodlight is a new type of LED flood lighting with LED technology, developed on the basis of the traditional flood light. Comparing with the traditional floodlight, it bears the advantages of high thermal conductivity, light failure is very less, uniform color beam, no double image, 80% much more energy saving, environmental protection, much longer lifetime etc… the products adopt constant current & constant voltage control system with high efficiency.
The BEST LED Driver and LED Chip we use
LED Driver Parameters of wall mounted led floodlight 60W
| Power | 60W |
| Input Voltage/Frequency | 85-265VAC/ 50-60Hz |
| Input Current(Typ) | 0.8A MAX |
| Output Voltage | 30-36V |
| Output Current | 1.8A |
| Efficiency(Typ) | 86% |
| Power Factor(Typ) | PF over than 95 |
Light fixture Parameters
| LEDChips QuantityLED | 1 Piece |
| System Consumption | 60W |
| LED Luminous Efficiency | 80-100Lm/W |
| Color Temperature | 2700K - 7000K |
| Lamp's Initial LuminousEfficiency | ≥70Lm/W |
| Lumen Maintenance | 70%(50000Hrs) |
| Color Rendering Index | Ra≥80 |
| Beam Angle | 120°or 60° |
| Operating Temperature | -40℃ +45℃ |
| Storage Temperature | -40℃ +70℃ |
| IP Grade | IP65 |
| Life-span | 50000Hrs |
| Materials | Aluminium |
| Appliance Class | ClassⅠ |
| The color of the lamp shell | Black/Silver |
| Power line | 1 mm2 The three wires |
| Package for total 2pcs 60W Wall mounted LED Floodlight | |
| Lamp inner package size | 150*330*435(mm) |
| Outer Carton package size | 315*345*455(mm) |
| Packing Weight of the radiator | 12.2 KGS |
| Net weight | 5.3 KGS |
This LED floodlight dimension
Three Installation ways as below,
The Flood Light Distribution
This LED floodlight's Effective AAI
Applications:
Widely used for indoor and outdoor illumination asWall wash illumination, swimming pool illumination, building frontageillumination, landscaping lighting, parking lot lighting, billboardillumination; Gymnasiums luminaries, factory luminaries,advertisement/billboard luminaries, Garden luminaries and other LEDluminaries.
Note
1. Any wire damage should be replaced by qualified professional person to avoid dangerous occurs.
2. Please cut down the input power supply once the lamp works abnormally.
3. Please take measures of lightning protection, and ensure the Input voltage is stable.
4. Please put the lamp under the dry, ventilated and clean circumstance, and clean and maintain regularly.
5. Don't disassemble by yourself; avoid the electric shock as there is high voltage inside the lamp.
