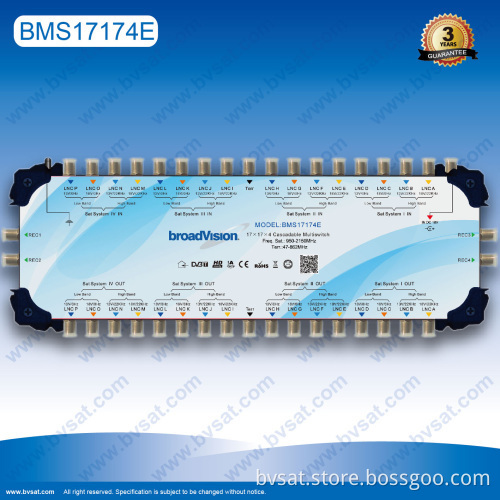

 Product name: BMS17174Ecascade multiswitch 16 SAT IF signals 4 subscribers of Satellite TV installation for Apartment with 4 rooms

BMS17174E cascade multiswitch with an external power supply are designed for the distribution of terrestrial and satellite signals from 4 satellite positions for up to 4 subscribers. Cascade Multiswitches are compatible with all satellite receivers, which support DiSEqC control system. They are suitable for both analog and digital reception.
The multiswitches and external power suppies are designed for maximum efficiency in full operation, eliminating need for stand-by mode functionality.



BMS17174Ecascade multiswitch 16 SAT IF signals 4 subscribers of Satellite TV installation application diagram for Apartment with 4 rooms ( e.g. same as BMS17178 application diagram )

LOCATION
• Locate the multiswitch indoors. Do not expose it to rain and direct solar radiation. Fix it to the wall by using suitable screws.
• Ensure a free space of 20 cm (7.8 inch) on each side of the unit, upwards a clearance at least 50 cm (19.7 inch).
• Choose an installation place where there is a possibility in case of emergency to get to mains plug and remove it out of the outlet.


Key Feature:
4 satellite star IF distribution cascade multiswitch system.
4 satellite star IF inputs, 4 satellite star IF outputs, 1 terrestrial input, 4 subscribers.
Ideal satellite TV solution for 4 rooms / floor apartment.
High performance cascade multiswitch.
Expanding coaxial cable power suppling.
18V / 2.5A external power adaptor.
Support Quad LNB.
Smart energy consumption save technology.



Specification:
            Item Typical QC Limit Remark
Frequency Range Terr.:47~862MHz SAT:950~2150MHz
Inputs 16 SAT+1 Terr. F connectors
Outputs 4 Receiver F connectors
Thru Loss Terr. 3dB 4dB
SAT 3dB 4dB
TAP Loss Terr. 6dB 8dB
SAT 0dB 2dB
Return Loss Terr. 12dB 10dB
SAT 12dB 10dB
Stop band attenuation Terr. 28dB 25dB
SAT 28dB 25dB
Isolation H/V 30dB 25dB
REC-REC 30dB 25dB
Power Adapter IN:100~240V OUT:18V 2000mA
Dimensions (L,W,H) 362×136×42 mm

More other 17in multiswitch products photo you make like:
BMS17174Ecascade multiswitch 16 SAT IF signals 4 subscribers of Satellite TV installation for Apartment with 4 rooms

BMS17174Ecascade multiswitch 16 SAT IF signals 4 subscribers of Satellite TV installation for Apartment with 4 rooms

BMS17174Ecascade multiswitch 16 SAT IF signals 4 subscribers of Satellite TV installation for Apartment with 4 rooms

BMS17174Ecascade multiswitch 16 SAT IF signals 4 subscribers of Satellite TV installation for Apartment with 4 rooms

Notice:

Do not open the multiswitch; otherwise there is a shock hazard.
Be sure with sufficient earthing of the aerials and aerial feeds.
CONNECTON
• Take care not to make short-circuits when mounting the F-connectors on the cables.
• Identify the down-lead cables from the LNB. Then interconnect the input marked 12V to the LNB output Vertical. Interconnect the input marked 18V to the LNB output Hori-zontal. In-terconnect the input marked 0kHz to the LNB output Low. Interconnect the input marked 22kHz to the LNB output High.
• Before connecting the input and output coaxial cables, disconnect from the mains the mul-tiswitch as well as the receivers and TV sets.
• In case of short-circuit of an antenna cable, electric power supply of the cable is automa-tically turned off and an alarm buzzer sounds (except in MS-0504 and MS-0508 models).Disconnect the multiswitch from the mains at least for 1 minute and remedy short-circuit of the connector.
• Not connected outputs of the multiswitch should be terminated with 75Ω terminations.
• Input signal levels may be levelled with the existing variable attenuators. This work requi-res an appropriate SAT-TV analyzer.
• MS-09xx and MS-17xx multiswitches have a built-in 22 kHz generator which makes possi-ble to send, through the miniature switchs on the unit, the command "22kHz" to selected SAT inputs, for High Band continuously.
• Active and passive mode of terrestrial band can be selected by the switchs or potentiome-ter. The return path is available in the passivemode.The applicable European Standards and national requirements to ensure electrical security have to be obeyed. Likewise natio-nal standards and requirements for radio
and TV receiving installations.
