International Satellite Tv Digital Stand-alone 5 In 12 Out Multiswitch

Introduction of International satellite TV digital stand-alone 5 in 12 out multiswitch

Keywords: satellite tv accessory. stand-alone multisiwtch. 5 in multiswitch.

Features of 5 x 12 multiswitch:


Specification of 5 x 12 multisitch:

Technical Datasheet
Item	Typical	QC Limit

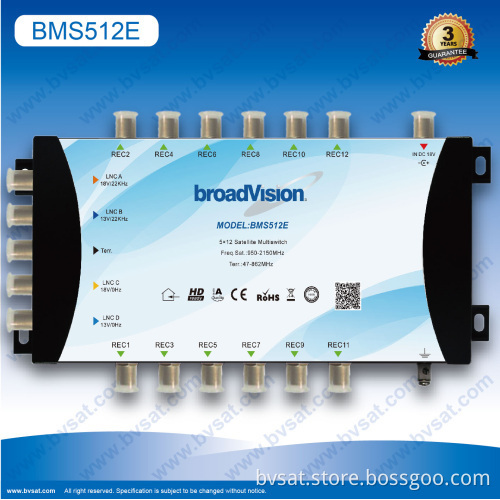

Model NO.	BMS512E
Description	Stand-alone5x12 multiswitch
Inputs/Outputs	4 SAT+1Terr./ 12 Receiver
Frequency Range	Terr.:47~862MHz  SAT:950~2150MHz
Switchingcommands	13V             18V
SwitchingVoltage	V:10-15.2V         H:15.2-20V
PowerSupply	IN:100~240V      OUT:18V 1200mA
Dimensions(L,W,H)	280×125×43mm
Max.Current Pass to LNB	1000 mA
InsertionLoss(SAT)	0dB	2dB
InsertionLoss(Terr.)	3dB	5dB
ReturnLoss(SAT)	12dB	10dB
ReturnLoss(Terr.)	12dB	10dB
Stop bandattenuation(SAT)	25dB	20dB
Stop bandattenuation(Terr.)	25dB	20dB
Isolation(H/V)	30dB	25dB
Isolation(REC-REC)	30dB	25dB

Production:



R & D:


Application test:


Package:


Packing detail:

Model	White box(L*W*H)(CM)	Carton(L*W*H)(CM)	N.W(KGS)	QTY/CTN	G.W(KGS)	CBM/CTN
BMS512E	38.5*13*6	40.5*28*33	6.4	10	9.2	0.037

Factory:


Vision:


Other products you may like:


                                                          5 x 16 multisiwtch(BMS516E)


                                                                    5 x 20 multiswitch(BMS520E)


                                                               5 x 5 x 8 multisiwtch(BMS558E)

About shipment:

1. By sea and air are our main deliivery way.
2. The shipping status will be informed once your order have been delivered.

About package:

1. Inner package: White box.
2. Outer package: Standard export carton.

About payment:

T/T,L/C and Western Union are acceptable.

Note:

1. This type products are used indoor like: apartment,hospital,school,building,comminity.
2. Before you connect or disconnect the switch, make sure the Receiveris completely disconnected from any electricity outlets and has no electric connection.


Promise:

1. Fast delivery.
2. High stable quality.
3. Sample order & Free sample is OK.
4. Your any requirement will get promptly attention.
