High Efficiency Coaxial Directv 2 In 12 Out 2 X 12 Satellite Multiswitch
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description

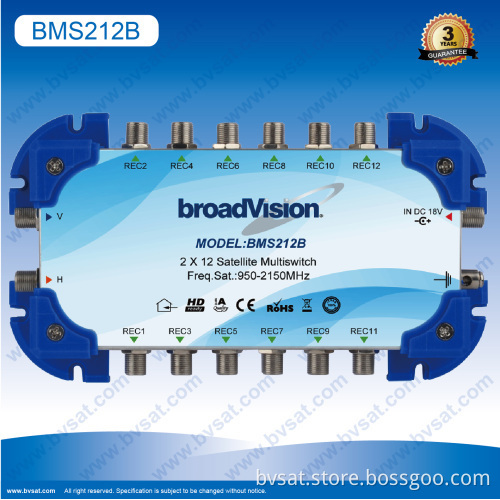

Product name: High efficiency coaxial directv 2 in 12 out 2 x 12 satellite multiswitch
Related keywords: satellite multiswitch, satellite TV accessory.
Product introduction:
Features:
Specification:
Other similar products:
2 x 16 multiswitch(BMS216B)
2 X 24 multiswitch (BMS224BX)
Production:
R & D:
Application test:
Q & A:
Package:
Package detail:
Factory:
Our team:
Our aim:
About shipment:
1. By sea and air are our main deliivery way.
2. The shipping status will be informed once your order have been delievered.
About package:
1. Inner package: White box.
2. Outer package: Standard export carton.
About payment:
T/T,L/C and Western Union are acceptable.
Note:
1. This type products are used indoor like: apartment,hospital,school,building,comminity.
2. Before you connect or disconnect the switch, make sure the Receiveris completely disconnected from any electricity outlets and has no electric connection.
Promise:
1. Fast delivery.
2. High stable quality.
3. Sample order & Free sample is OK.
4. Your any requirement will get promptly attention.
Thanks for browsing.
Related keywords: satellite multiswitch, satellite TV accessory.
Product introduction:
Features:
- 2 satellite IF inputs for 12 satellite receiver
- 2 satellite IF inputs selected by 13V\18V signal
- Built-in amplifier
- Low insertion loss, high isolation and return loss
- SAT-IF-PATHs to the subscribers are active and supplied by thereceiver
- Design good for indoor usage
Specification:
Technical Datasheet | ||
Item |
Typical |
QC Limit |
Model NO. |
BMS212B |
|
Description |
Stand-alone2x12 multiswitch |
|
Inputs/Outputs |
2 in/12out |
|
Frequency Range |
950-2150MHz |
|
Switchingcommands |
13V 18V |
|
SwitchingVoltage |
V:10-14.5V H:15.5-20V |
|
Power Adapter |
IN:100~240V OUT:18V 500mA |
|
Impedanceinput/output |
75Ω |
|
Dimensions(L,W,H) |
196×110×42mm |
|
SupplyVoltage |
20DC(±1)700mA |
|
DC MaxPower Passing |
500 mA |
|
InsertionLoss |
4dB |
5dB |
ReturnLoss |
12dB |
10dB |
Isolation(H/V) |
30dB |
25dB |
Isolation(REC-REC) |
35dB |
30dB |
Other similar products:
2 x 16 multiswitch(BMS216B)
2 X 24 multiswitch (BMS224BX)
Production:
R & D:
Application test:
Q & A:
Package:
Package detail:
| Model | White box(L x W x H)(cm) | Carton(L x W x H)(cm) | N.W(KGS) | QTY/CTN | G.W(KGS) | CBM/CTN |
| BMS212B | 27*12*6 | 50*29*33 | 7.6 | 20 | 11.3 | 0.048 |
Factory:
Our team:
Our aim:
About shipment:
1. By sea and air are our main deliivery way.
2. The shipping status will be informed once your order have been delievered.
About package:
1. Inner package: White box.
2. Outer package: Standard export carton.
About payment:
T/T,L/C and Western Union are acceptable.
Note:
1. This type products are used indoor like: apartment,hospital,school,building,comminity.
2. Before you connect or disconnect the switch, make sure the Receiveris completely disconnected from any electricity outlets and has no electric connection.
Promise:
1. Fast delivery.
2. High stable quality.
3. Sample order & Free sample is OK.
4. Your any requirement will get promptly attention.
Thanks for browsing.
