New Digital Satellite Tv Multiswitch 6in 8out

 Product name:new digitalsatellite TVmultiswitch 6in 8out

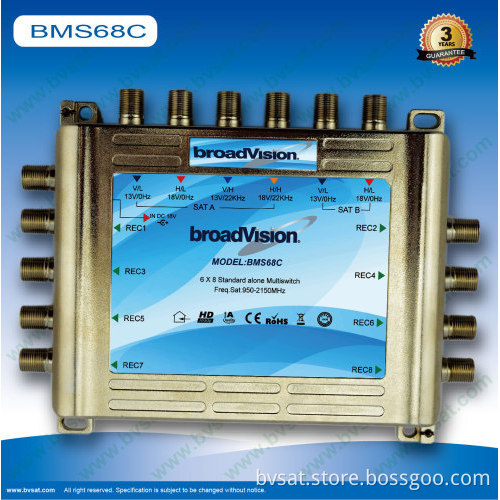

The BMS68C multiswitch is designed for 6 satellite IF and 8 subscribers. It used zinc die casting housing with easy installation. We design the circuit amplifer function to compensate the signal loss. This type products are used indoor like: apartment,hospital,school,building,comminity.



key Feature:
6 satellite IF inputsfor 8 satellite receiver.
6 satellite IF inputs selected by 13V\18V\22KHz and DisEqC 2.0 signal.
Built-in amplifier.
Low insertion loss, high isolation and return loss.
SAT-IF-PATHs to the subscribers are active and supplied by the receiver.
Design good for indoor usage.

Specification:

Item		Specifications		Remark
Frequency Range		SAT:950~2150MHz
Inputs		6 SAT		F connectors
Outputs		8 Receiver		F connectors
Insertion Loss		3dB
Return Loss		10dB
Isolation	H/V	30dB	25dB
	REC-REC	35dB	30dB
Power Adapter		IN:100~240V OUT:18V 1200mA
Dimensions (L,W,H)		170×130×26		mm

Testing process:


Quality Assurance:



Packing and shipping:

Model	QTY/CTN	N. W.( KGS )	G.W. ( KGS )	SIZE ( cm )
BMS64C	20	10.7	11.1	56*30*33
BMS666C	20	11	11.4	56*30*33
BMS68C	20	11.3	11.7	56*30*33

Shipping:
1. By sea and air are our main deliivery way.
2. The shipping status will be informed once your order have been delivered.
Packing:
1. Inner package: White box.
2. Outer package: Standard export carton.



Application:
1. Apartment
2. Hotel
3. Villa
4. hospital
5. school.
6. it is ideal solution for digital satellite TV system.

What is Broadvision ?

Shenzhen Broadvision Technology Limited.specializes in the research and development, production, distribution and services of Satellite-TV accessory and CATV accessory and HDMI products etc located in Shenzhen city, Guangdong Province. All the products are for exporting and we have been winning a good reputation of high quality and thoughtful service from overseas customers.



Strong R&D capacity:
With top-ranking R&D and experienced management personnel, advanced imported manufacturing equipment, the research and development level of SHENZHEN BROADVISION TECHNOLOGY has reached to a world-class level in the field of Satellite receiver and Satellite TV accessory and CATV accessory producing. In the spirits of Profession, Concentration and Attention, wish to be your best supplier and partner of Quality & Innovative IF distribution equipment.



Before you connect or disconnect the switch, make sure the Receiveris completely disconnected from any electricity outlets and has no electric connection.
