5 In 20 Out Cascadable Satellite Multiswitch For Smatv System With Good Quality
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Product name: 5 in 20 out cascadable satellite multiswitch for SMATV system with good quality
Product Model NO.:
Features of 5 in 20 out cascadable satellite multiswitch for SMATV system with good quality:
Detail photo of 5 in 20 out cascadable satellite multiswitch for SMATV system with good quality:
Specifications of 5 in 20 out cascadable satellite multiswitch for SMATV system with good quality:
Package and shipping show:
Package information of 5 in 20 out cascadable satellite multiswitch for SMATV system with good quality:
Production line show:
Q & A show:
R & D show:
Testing show:
Factory show:
Our sales team in Shenzhen:
What can we do for you? :
About Broadvision:
Company with sales team located in Shenzhen, factory which has 200 workers, 2000 m2 non-dust workshop, 10 years experience, CE & RoHs certificated, 3 years quality warranty, one hour reach Shenzhen or Guangzhou port, this is how we keep good quality and competitive prices for global valued customers.
Our main products cover satellite multiswitch, Splitter, Amplifier, LNB, A/V products etc.
If any product meet your demand, pls do not hesitate to contact us, we are sure any of your inquiry will get our prompt attention and reply!
Product Model NO.:
Features of 5 in 20 out cascadable satellite multiswitch for SMATV system with good quality:
1. 4 satellite IF+1 terrestrial TV inputs versions for 20 subscribers outputs
2. Passive gain circuit via terrestrial input
3. Built-in amplifiers
4. Low cascading loss at high subscriber extensions
5. Low power consumption thanks to new generation components
6. Ideal for middle and large SMATV system

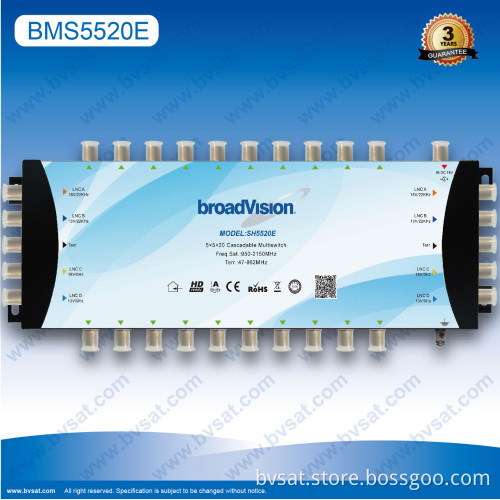

Detail photo of 5 in 20 out cascadable satellite multiswitch for SMATV system with good quality:
Specifications of 5 in 20 out cascadable satellite multiswitch for SMATV system with good quality:
Technical Datasheet | ||
Item |
Typical |
QC Limit |
Model NO. |
BMS5520E |
|
Description |
Cascadeable 5x5x20 multiswitch |
|
Inputs/Outputs |
4 SAT+1 Terr./ 20 Receiver
|
|
Frequency Range |
Terr.:47~862MHz SAT:950~2150MHz |
|
Switching commands |
13V 18V |
|
Power Adapter |
IN:100~240V OUT:18V 1200mA |
|
Dimensions (L,W,H) |
310×125×43 mm |
|
Max. Current Pass to LNB |
1200 mA |
|
Thru Loss(Terr.) |
4dB |
5dB |
Thru Loss(SAT) |
4dB |
5dB |
Tap Loss(Terr.) |
5dB |
7dB |
Tap Loss(SAT) |
3dB |
5dB |
Return Loss(Terr.) |
12dB |
10dB |
Return Loss(SAT) |
12dB |
10dB |
Stop band attenuation(Terr.) |
28dB |
25dB |
Stop band attenuation(SAT) |
28dB |
25dB |
Isolation(H/V) |
30dB |
25dB |
Isolation(REC-REC) |
30dB |
25dB |
Package and shipping show:
Package information of 5 in 20 out cascadable satellite multiswitch for SMATV system with good quality:
| Model | White box(LxWxH cm) | Carton(LxWxH cm) | N.W(KGS) | QTY/CTN | G.W(KGS) | CBM/CTN |
| BMS5520E | 41*13*6 | 43*28*33 | 7.5 | 10 | 10.6 | 0.04 |
Production line show:
Q & A show:
R & D show:
Testing show:
Factory show:
Our sales team in Shenzhen:
What can we do for you? :
About Broadvision:
Company with sales team located in Shenzhen, factory which has 200 workers, 2000 m2 non-dust workshop, 10 years experience, CE & RoHs certificated, 3 years quality warranty, one hour reach Shenzhen or Guangzhou port, this is how we keep good quality and competitive prices for global valued customers.
Our main products cover satellite multiswitch, Splitter, Amplifier, LNB, A/V products etc.
