Product name: Satellite dish network 2x2x8 cascadable multiswitch wholesale
Model NO.
Features of Satellite dish network 2x2x8 cascadable multiswitch wholesale:
Detail photos of Satellite dish network 2x2x8 cascadable multiswitch wholesale:
Specifications of Satellite dish network 2x2x8 cascadable multiswitch wholesale:
Package photo:
Package information of Satellite dish network 2x2x8 cascadable multiswitch wholesale:
Production show:
Q&A:
R&D:
Test:
Our factory:
Our sales team:
Our company services:
You may also like these products:
Model NO.
Features of Satellite dish network 2x2x8 cascadable multiswitch wholesale:
1. 2 satellite inputs
2. 8 subscribers outputs
3. Built in Amplifiers
4. Sheet metal housing with plastic holder
5. High frequency
6. Best Performance, European Quality, CE & RoHs Approved
7. Low Insertion losses on taps and splitters ensure extensive system reach
8. 3 year warranty
9. Connectors: "F"type female

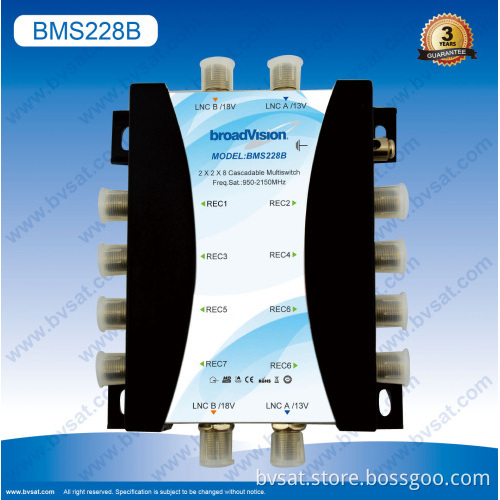

Detail photos of Satellite dish network 2x2x8 cascadable multiswitch wholesale:
Specifications of Satellite dish network 2x2x8 cascadable multiswitch wholesale:
Technical Datasheet | ||
Item |
Typical |
QC Limit |
Model NO. |
BMS228B |
|
Description |
Cascadeable 2x2x8 multiswitch |
|
Inputs/Outputs |
2 in/8 out |
|
Frequency Range |
950-2150MHz |
|
Switching commands |
13V 18V |
|
Switching Voltage |
V:10-14.5V H:15.5-20V |
|
Power supply |
Power supplied from Receiver
|
|
Impedance input/output |
75Ω |
|
Dimensions (L,W,H) |
138×108×43 mm |
|
Supply Voltage |
20DC(±1)700mA |
|
DC Max Power Passing |
500 mA |
|
Thru Loss |
2dB |
3dB |
Tap Loss |
0dB |
2dB |
Return Loss |
12dB |
10dB |
Isolation(H/V) |
30dB |
25dB |
Isolation(REC-REC |
35dB |
30dB |
Package photo:
Package information of Satellite dish network 2x2x8 cascadable multiswitch wholesale:
| Model | White box | Carton(LxWxH) | N.W(KGS) | QTY/CTN | G.W(KGS) | CBM/CTN |
| BMS228B | 15*12.5*4.6 | 64.5*32*26 | 11 | 50 | 15.5 | 0.054 |
