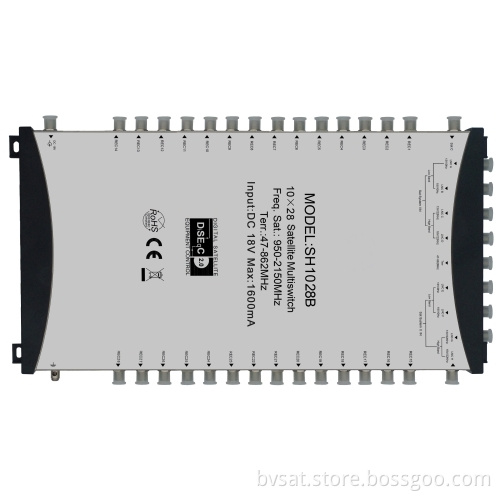

Product Name: 10 in 28 out HDTV stand-alone multiswitch

Satellite Multiswitches come in many different versions, but they all allow many satellite receivers to share satellite dish and LNB, installation and cabling. They are usually used in hotels, blocks of flats or smaller multi dwelling buildings. They usually accept one aerial input as well as the satellite dish.

Model Name: SH1028B

Feature:

9 satellite IF 1 terrestrial TV inputs to 28 outputs for satellite receivers
Subscriber port protection up to 100 volts
100m distribution length per subscriber
Subscriber control system with LED
Ergonomically, stylish design
Compatible with terrestrial digital broadcasts [ DVB-T]
Not sensitive to satellite receiver thanks to DiSEqC 2.1 software [firmware]
SMPS power supply
Capable to function even at low signal levels due to high isolation
Easy installation
Low power consumption thanks to new generation components.

Specification:

ITEM			TYP	REMARK
Frequency response			47-2150MHz
Inputs			9 SAT+1 Teer	F connectors
Outputs			28 TAP	F connectors
Trunk loss	Terr 47-862MHz		7dB
	Sat 950-2150MHz		7dB
Tap Gain	Terr 47-862MHz		1dB
Tap loss	Sat 950-2150MHz		9dB
Return Loss	Terr in 47-862MHz		12dB
	Sat in 950-2150MHz		12dB
	Terr out 47-862MHz		10dB
	Sat out 950-2150MHz		10dB
Isolation	LNB-LNB 950-2150MHz		40dB
	OUT-OUT	Terr 47-862MHz	40dB
		Sat 950-2150MHz	35dB
	H/V	Sat 950-2150MHz	35dB
Switching voltage			15±1V
Switching commands			13V,18V,13V/22KHz, 18V/22KHz DiSEqC2.0
