Cable Tv Dish Network 5x8 Satellite Multiswitch For Stand-alone Series

Product name: Cable TV dish network 5x8 satellite multiswitch for stand-alone series

1. Basic products information:

Specification:
1. 4 satellite IF and 1 terrestrial TV inputs for 6 satellite receiver
2. 4 satellite IF inputs selected by 13V\18V and 22KHz signal
3. Low insertion loss, high isolation and return loss
4. Sheet metal housing with plastic holder
5. It can stand extreme weather conditions ranging from -40°C - +60 °C.
6. External high-stability power adaptor

Picture:



Specifications:

Specifications                    Item		Typical	QC Limit	Remark
Frequency Range		Terr.:47~862MHz SAT:950~2150MHz
Inputs		4 SAT+1 Terr.		F connectors
Outputs		6 Receiver		F connectors
Insertion Loss	Terr.	1dB	3dB
	SAT	4dB	6dB
Return Loss	Terr.	12dB	10dB
	SAT	12dB	10dB
Stop band attenuation	Terr.	26dB	25dB
	SAT	26dB	25dB
Isolation	H/V	30dB	25dB
	REC-REC	30dB	25dB
Switching Voltage		V:10~14.5V     H:15~20V
Power Supply		IN:90~264V OUT:18V 1200mA
Dimensions (L,W,H)		362×125×70		mm

2. Related 5 in prosucts show:

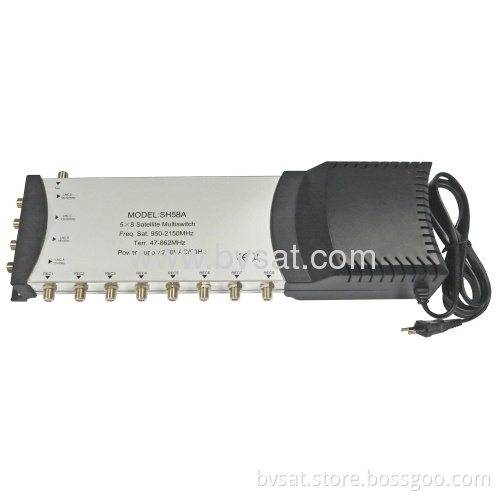

                                                                              Model: SH58A


                                                                             Model: SH512A


                                                                                Model: SH516A

3. Note:

a. Sample order and small quanlity is acceptable.
b. Reliable quality assured.
c. Professional design group is waiting to serve for you.
d. Environmental friendly metal housing with plastic holder.

4. Package show:





Carton size:

White box       L×W×H ( CM )

Carton            L×W×H ( CM )

N.W(KGS)

QTY/CTN

G.W (KGS)

CBM/CTN

38*13*7.8

40*28*42

7.6

10

10.2

0.047

5. Promise:
