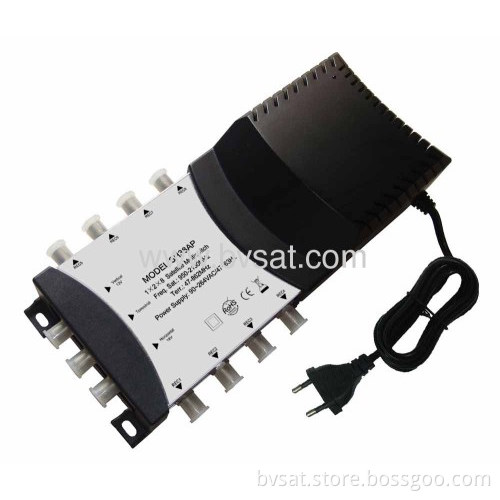

Zinc Tie Housing Digital Satellite Stand-alone 3 X 8 Series Multiswitch With Power Supply

Product name: Zinc tie housing digital satellite stand-alone 3 x 8 series multiswitch with power supply

Featrues:
2 satellite IF and 1 terrestrial TV inputs for 8 satellite receiver
2 satellite IF inputs selected by 13V/18V signal
Low insertion loss, high isolation and return loss
SAT-IF-PATHs to the subscribers are active and supplied by the receiver
Zinc die cast housing, nickel plated
Design good for indoor usage

Specifications
Specifications                    Item		Typical	QC Limit	Remark
Frequency Range		Terr.:47~862MHz SAT:950~2150MHz
Inputs		2 SAT+1 Terr.		F connectors
Outputs		8 Receiver		F connectors
Insertion Loss	Terr.	0dB	2dB
	SAT	2dB	3dB
Return Loss	Terr.	12dB	10dB
	SAT	12dB	10dB
Stop band attenuation	Terr.	26dB	25dB
	SAT	26dB	25dB
Isolation	H/V	30dB	25dB
	REC-REC	30dB	25dB
Switching Voltage		V:10~14.5V     H:15~20V
Power Supply		IN:90~264V OUT:18V 1200mA
Dimensions (L,W,H)		252×125×70		mm
