Professional Stand-alone 2x24 Series Satellite Tv Multiswitch

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

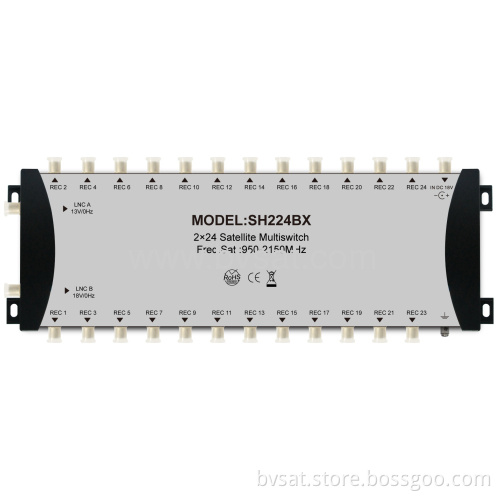

Product name: Professional stand-alone 2x24 series satellite TV multiswitch

Featrues:

2 satellite IF inputs for 24 satellite receiver

2 satellite IF inputs selected by 13V\18V signal

Built-in amplifier

Low insertion loss, high isolation and return loss

SAT-IF-PATHs to the subscribers are active and supplied by the receiver

Sheet metal housing with plastic holder

Design good for indoor usage

Specifications

Specifications Item Typical QC Limit Remark

Frequency Range SAT:950~2150MHz

Inputs 2 SAT F connectors

Outputs 24 Receiver F connectors

Insertion Loss 4dB 5dB

Return Loss 12dB 10dB

Isolation REC-REC 35dB 30dB

H/V 30dB 25dB

Switching Voltage V:10~14.5V H:15~20V

Power Adapter IN:100~240V OUT:18V 500mA

Dimensions (L,W,H) 196×110×42 mm

Show time:

Professional stand-alone 2x24 series satellite TV multiswitch

Send your message to this supplier

* From:
* To:

Mr. Johnny Ho
* Messages:

Enter between 20 to 4,000 characters.

Featrues:
2 satellite IF inputs for 24 satellite receiver
2 satellite IF inputs selected by 13V\18V signal
Built-in amplifier
Low insertion loss, high isolation and return loss
SAT-IF-PATHs to the subscribers are active and supplied by the receiver
Sheet metal housing with plastic holder
Design good for indoor usage

Specifications
Specifications Item		Typical	QC Limit	Remark
Frequency Range		SAT:950~2150MHz
Inputs		2 SAT		F connectors
Outputs		24 Receiver		F connectors
Insertion Loss		4dB	5dB
Return Loss		12dB	10dB
Isolation	REC-REC	35dB	30dB
	H/V	30dB	25dB
Switching Voltage		V:10~14.5V H:15~20V
Power Adapter		IN:100~240V OUT:18V 500mA
Dimensions (L,W,H)		196×110×42		mm
