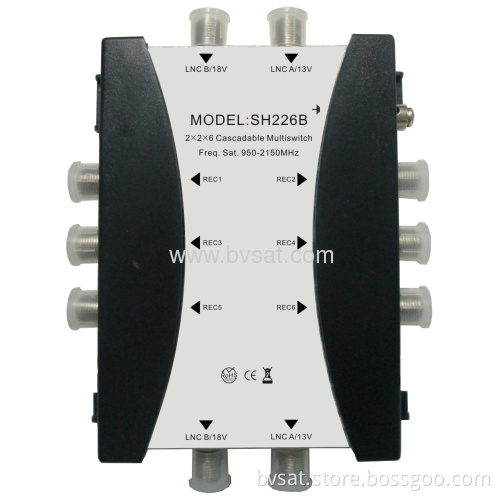

Product name:Fresh new style 2x2x6 cascadeable sat multiswitch

Company introduce:

SHENZHEN BROADVISION TECHNOLOGY LIMITED specializes in the research and development, production, distribution and services of digital television products, many of which include digital satellite receiver(DVB-S), television set-top box (DVB-C), ground broadcasting digital television receiver (DVB-T), network receiving digital set-top box (DVB-PC,DVB-IP), satellite multiswitch etc located in Shenzhen city, Guangdong Province. All the products are for exporting and we have been winning a good reputation of high quality and thoughtful service from overseas customers.

Specification:

1.2 satellite inputs to 2+4 outputs for satellite receivers
2. Allow use of 1 Quatro or up to 2 Dual or Twin LNBs.
3.Single coaxial cable conveys both satellite.
4.External Switching Power Supply can set up the operational power of LNB.
5.Sheet metal housing with plastic holder.
6.Very low tap loss,Minimum through loss.

ITEM			TYP	REMARK
Frequency response			47-2150MHz
Inputs			12SAT+1 Terr	F connectors
Outputs			13+16 TAP	F connectors
Trunk loss	Terr 47-862MHz		5dB
	Sat 950-2150MHz		5dB
Tap loss	Terr 47-862MHz		8dB
	Sat 950-2150MHz		2dB
Return Loss	Terr in 47-862MHz		12dB
	Sat in 950-2150MHz		12dB
	Terr out 47-862MHz		8dB
	Sat out 950-2150MHz		8dB
Isolation	LNB-LNB 950-2150MHz		35dB
	OUT-OUT	Terr 47-862MHz	26dB
		Sat 950-2150MHz	30dB
	H/V	Sat 950-2150MHz	26dB
Switching voltage			15±1V
Switching commands			13V,18V,13V/22KHz, 18V/22KHz DiSEqC2.0
Switching Adapter			18V 2.5A	Optional
