Product name:High Effective 2x2x4 cascadeable multiswitch for satellite receiver
Specification:
1. Zinc alloy crust
2. High isolation
3. Low insertion loss
4. 13V/18V and 0/22KHz control

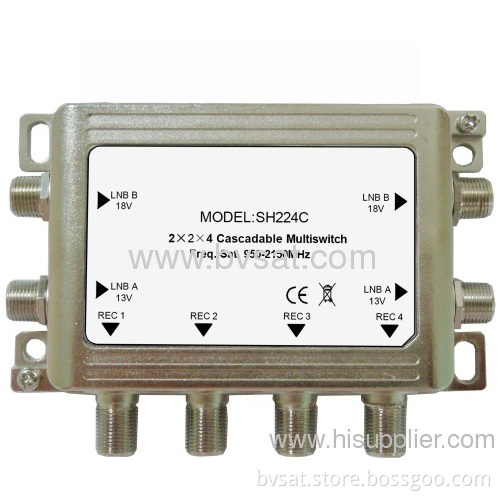

Product picture show:
Model NO.SH224C
Packing picture show:
Container picture show:
Related product show:
Model NO.SH224B
Model NO.SH226B
Model NO.SH228B
Model NO.SH228C
Specification:
1. Zinc alloy crust
2. High isolation
3. Low insertion loss
4. 13V/18V and 0/22KHz control
Model |
MS1708 |
|
Frequency |
Satellite: (MHz) |
950-2150 |
Terrestrial: (MHz) |
47-862 |
|
Inputs (F Connectors) |
16 Sat.+1 Terr.+ Power In |
|
Outputs (F Connectors) |
8 Taps |
|
Insertion Loss |
Trunk Sat. (dB) |
/ |
Trunk Terr. (dB) |
/ |
|
Tap Sat. (dB) |
7 |
|
Tap Terr. (dB) |
3 |
|
Isolation |
Trunk-Trunk (dB) |
30 |
Cross Polar (dB) |
28 |
|
Tap-Tap(Sat) (dB) |
30 |
|
Tap-Tap(Terr.) (dB) |
25 |
|
Rejection (dB) |
25 |
|
Return Loss |
Trunk in/out (dB) |
11 |
Tap (dB) |
8 |
|
Output Level |
Sat.(IMA335dB).EN50083-3 (dB) |
100 |
Terr.(IMA360dB) EN50083-5 (dB) |
90 |
|
Switching Voltage (V) |
15+1V |
|
LNB Power Supply Max. (A) |
1.5A |
|
Power Supply (Vac/Hz) |
External Power Adaptor90~260/47~63 |
|
Switching Commands |
13V,18V,13V/22KHz,18V/22KHz, DisEqC2.0 |
|
Dimension (mm) |
348×140×41 |
|
Product picture show:
Model NO.SH224C
Packing picture show:
Container picture show:
Related product show:
Model NO.SH224B
Model NO.SH226B
Model NO.SH228B
Model NO.SH228C
