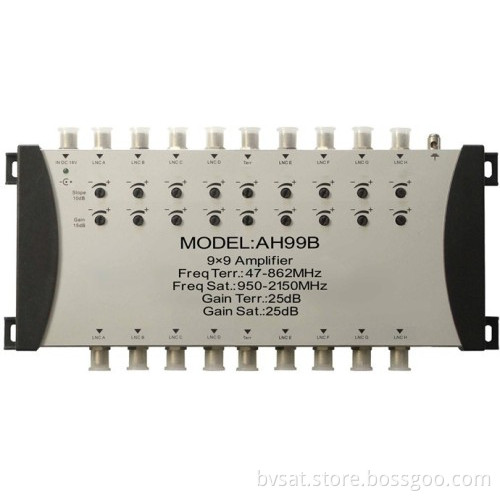

product name 47-2150MHz satellite trunk distribution amplifier
feature
1. High power line amplifier in cascades
2. Gain and slope adjustable
3.Enabling or disabling of current to LNB
4.Sheet metal housing with plastic holder
5.Integrated terr.amplifier
47-2150MHz satellite trunk distribution amplifier
feature
1. High power line amplifier in cascades
2. Gain and slope adjustable
3.Enabling or disabling of current to LNB
4.Sheet metal housing with plastic holder
5.Integrated terr.amplifier
| ITEM | TYPICAL | REMARK | |||||
| Frequency response | 47-2150MHz | ||||||
| Inputs | 8SAT+1 Terr | F connectors | |||||
| Outputs | 8SAT+1 Terr | F connectors | |||||
| Gain | Terr 47-862MHz | 15dB | |||||
| Sat 950-2150MHz | 25dB | ||||||
| Adjustment Range | Terr 47-862MHz | 0~15dB | Gain | ||||
| Sat 950-2150MHz | 0~15dB | Gain | |||||
| Adjustment Range | Terr 47-862MHz | 0~10dB | Slope | ||||
| Sat 950-2150MHz | 0~10dB | Slope | |||||
| Rejection | Terr/sat 47-862MHz | 30dB | |||||
| Sat/Terr 950-2150MHz | 30dB | ||||||
| Return Loss | Terr input 47-862MHz | -10dB | |||||
| Terr output 47-862MHz | -10dB | ||||||
| Sat input 950-2150MHz | -10dB | ||||||
| Sat output 950-2150MHz | -10dB | ||||||
| Output level | Sat (IMA3 35dB) EN50083-3 | 108dBμV | |||||
| Terr (IMA3 60dB) EN50083-3 | 100dBμV | ||||||
| Switching Adapter | 18V 1.6A | Optional | |||||
47-2150MHz satellite trunk distribution amplifier
