950-2300mhz 20 Db Inline Signal Amplifier
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description

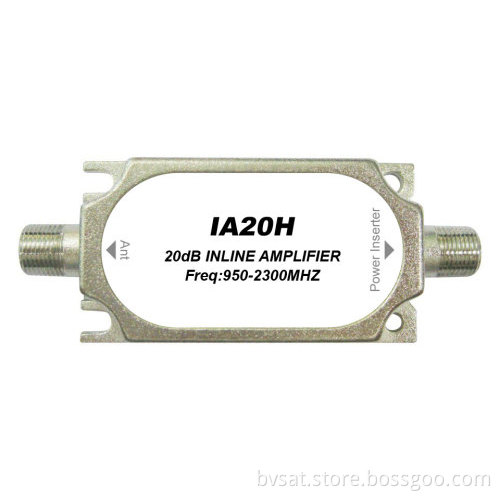

Product Name: 950MHz-2300MHz 20 dB inline signal amplifier
Feature:
20 dB Gain, frequency: 950MHz-2300MHz
Boost Weak TV/Cable Signals over Long Cable Runs
Powered by the receiver via coaxial cable
Design for in line boosting of SAT IF signal
Models with slop gain can equilibrate for cable loss
Low inter-modulation distortion
500mA power pass for LNB operation requirement
Output level test according to EN50083-3 or -5
Screening factor: Compliant to Class B
Zinc die-casting housing, nickel-plated.
Model: IA20H
specification:
Feature:
20 dB Gain, frequency: 950MHz-2300MHz
Boost Weak TV/Cable Signals over Long Cable Runs
Powered by the receiver via coaxial cable
Design for in line boosting of SAT IF signal
Models with slop gain can equilibrate for cable loss
Low inter-modulation distortion
500mA power pass for LNB operation requirement
Output level test according to EN50083-3 or -5
Screening factor: Compliant to Class B
Zinc die-casting housing, nickel-plated.
Model: IA20H
specification:
| ITEM | Typical | ||||||
| Frequency response | 950-2300 MHz | ||||||
| Gain | 20 dB | ||||||
| Noise Figure | 5 dB | ||||||
| Return Loss | 8 dB | ||||||
| Output Level | SAT: 110@ 35 dB IMA3; Terr.: 105 @ 65 dB IMA3 | ||||||
| Power supply | 13-18V DC, 40mA |
