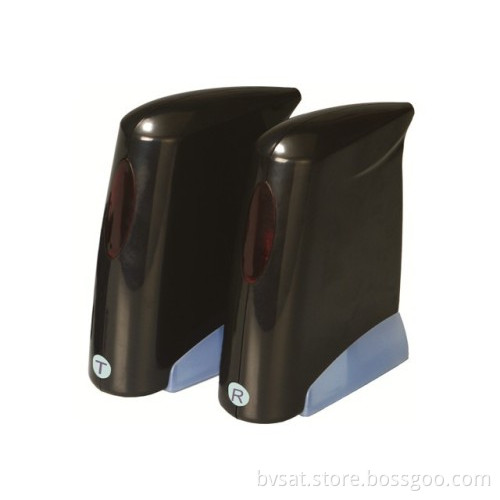

Classic Black 2.4ghz Wireless Av Senders

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

product name:2.4GHz wireless av senders

* With 4 selectable channels(Dip Switch)
* Transmit the crisp A/V signal with radio frequency

* Compact size
* With 2.4 GHz antennas embedded into housing
* Remote control the A/V source with IR extender

* NTSC/PAL video format available

* Compatible with Camcorder or CMOS camera application

2.4GHz wireless av senders

ITEM	201T	201R
2.4GHz antenna	Internal Omni-directional antenna	Internal Omni-directional antenna
433MHz antenna	External omni-directional antenna	External Omni-directional antenna
Transmit power	10 dBm(Typical)	–
Sensitivity	–	Sensitivity
Frequency band	2.400~2.4835GHz	2.400~2.4835GHz
Channel Customer	4 selectable channels 2414, 2432, 2450, 2468 MHz	4 selectable channels 2414, 2432, 2450, 2468 MHz
Input format	Available in NTSC or PAL	–
Output format	–	Available in NTSC or PAL
Video input level	1 Vp-p@75Ω	–
Audio input level	1 Vp-p@600Ω	–
Video output level	–	1 Vp-p@75Ω
Audio output level	–	1 Vp-p@600Ω
Input / output Connector	MINI 6 DIN	MINI 6 DIN
Operating condition	Indoor usage recommend	Indoor usage recommend
Remote control frequency	433.92MHz	433.92MHz
IR carrier frequency	32~38KHz	32~38KHz
Power Consumption	12Volt DC, 500mA(Typical)	12Volt DC, 500mA(Typical)
Operating Temperature	-10℃ ~ +60℃	-10℃ ~ +60℃
Dimension/Weight	22169 cm / 0.94 KG
Carton Size/ Quantity	453833 cm / 15 PCS
