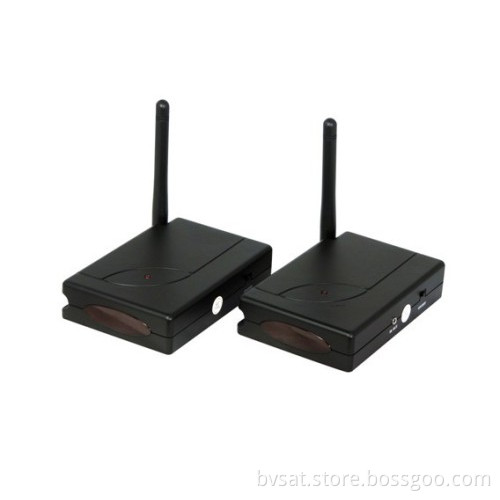

product name: Mini size 4 selectable channels 2.4 GHz Wireless AV Sender


                                                                 Model Name: 206T/206R
Feature:
           Audio/ Video System----206S
          * With 2.4GHz Frequency
          * With 4 selectable channels(Tact Switch)
          * Transmit the crisp A/V signal with radio frequency
          * External Omni-directional antenna
          * Remote control the A/V source with IR extender
          * NTSC/PAL video format available
          * Compatible with Camcorder or CMOS camera application
          * Mini size with modern design

Specification:
ITEM 206T 206R
2.4GHz antenna External Omni-directional antenna External Omni-directional antenna
433MHz antenna Internal omni-directional antenna Internal Omni-directional antenna
Transmit power 10 dBm(Typical)  –
Sensitivity  –85dBm type
Frequency band 2.400~2.4835GHz 2.400~2.4835GHz
Channel Customer 4 selectable channels 4 selectable channels
Input format Available in NTSC or PAL
Output format Available in NTSC or PAL
Video input level 1 Vp-p@75Ω
Audio input level 1 Vp-p@600Ω
Video output level 1 Vp-p@75Ω
Audio output level 1 Vp-p@600Ω
Input / output Connector 3.5mm stereo Male plug to 3 RCA 3.5mm stereo Male plug to 3 RCA
Operating condition Indoor usage recommend Indoor usage recommend
Remote control frequency 433.92MHz 433.92MHz
IR carrier frequency 32~38KHz 32~38KHz
Power Consumption 9Volt DC, 90mA(Typical) 9Volt DC, 90mA(Typical)
Operating Temperature -10℃ ~ +60℃ -10℃ ~ +60℃
Dimension/Weight 18.5*11.3*9.5 cm
Carton Size/ Quantity 37.5*30*31.5 cm     /   15 PCS
