2 In 8 Out Satellite Multiswitch With Power Supply

These high performance multi-switches are designed to provide excellent connectivity with today's satellite systems and emerging technologies. They are suitable for use with the DirecTV 18-inch round satellite dish antenna equipped with a dual-port LNBF The high performance pin-diode switching coupled with the state-of-the-art surface mount technology translates into ultra low signal losses and ultra high signal integrity. Local signals are easily combined within the multi-switch, eliminating duplicate cable runs. The heavy-duty, weatherproof case allows the multi-switch to be mounted virtually anywhere, indoors or out.

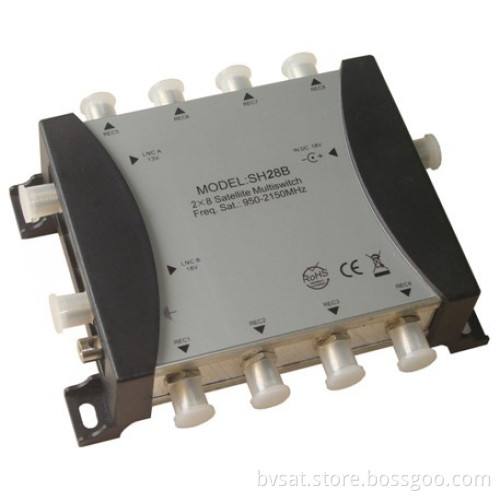

                                                        Model Name: SH28B

Feature:

2 satellite IF inputs to 8 outputs for satellite receivers.

Allow use of 1 Quatro or up to 2 Dual or Twin LNBs.

Single coaxial cable conveys both satellite.

External Switching Power Supply can set up the operational power of LNB.

Sheet metal housing with plastic holder.

Very low tap loss

Specification:

ITEM				TYP		REMARK
Frequency response				950-2150MHz
Inputs				2 SAT		F connectors
Outputs				8		F connectors
Tap Loss		Sat 950-2150MHz		5dB
Return Loss		Sat in 950-2150MHz		10dB
		Sat out 950-2150MHz		8dB
Isolation		LNB-LNB 950-2150MHz		35dB
		OUT-OUT	Sat 950-2150MHz	30dB
		H/V	Sat 950-2150MHz	26dB
Switching voltage				15±1V
Switching commands				13V,18V
