Basic Info

Product Description

Dimension:	35(l)35(W)4(H)mm	LED No:	5 Pcs 5050 SMD LED Beam Angle 150Degree
Voltage:	Input DC12V	IP:	IP68 The PCB Be Covered By Resin
Net Weight(g):	10g/pc 200g/20pcs	Part No:	REX35-5W 5050

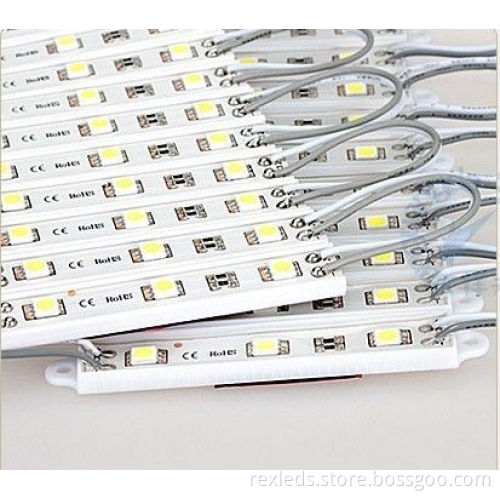

Environmental Waterproof SMD LED Module with 3 Chips and IP68 Protection Degree

Hot sale!!! waterproof ip67, CE Rohs 3 chips 5050 Mini SMD LED module for acrylic illuminated signs,0.72w for light box

injection smd led module 5050 with high lumen

IP65 Water proof LED Module for Advertising Light Box

4pcs 5050 SMD LED module,20pcs a string RGB,12V led pixel module

Application:

1. Electronic signs Backlighting for Advertisement

2. Commercial advertising signs

3. Channel letters Message display backlighting

4. LED light strips Signboard and Billboard

5. Automotive lighting

6. Festival decoration

7. Advertisement light-box

8. Accent lighting Logo backlighting

Specification

Dimension	35(l)35(W)4(H)mm
LED No	5 pcs 5050 SMD LED Beam angle 150Degree
Voltage	Input DC12V
Current	30mA	30mA	30mA	30mA	30mA
Watts	0.48	0.48	0.48	0.72	0.72
Lumen	18~28	18~28	18~28	16~22	16~22
Color	White	Blue	Green	Yellow	Red
IP	IP68 The PCB be covered by resin.
Net Weight(g)	10g/pc.200g/20pcs
Part No	REX35-5W 5050	REX35-5B 5050	REX35-5G 5050	REX35-5Y 5050	REX35-5R 5050

Item Number: REX35-4X(X-White/red/blue/green/yellow)

Judged against the performance of standard neon or fluorescent lamps, REXLEDs 4 SMD LEDs Waterproof LED Modules (REX35-4X3528 Series) are ideal for signage channel letters’ compacts spaces, which provide significant energy cost reductions(less 40%than neon), easier jobsite installation(splice connector or twist-on wire connector and 3M double-faced sticking tape), free maintenance and more consistent brightness

Features

·High Brightness

REXLEDs 4 SMD LEDs waterproof Module adopts 4pcs 3-chip SMD LEDs as its luminous body in high intensity and can emit higher brightness at lower cost. Bigger chip in LED. No spot. No shadow

·Excellent heat dissipation

REXLEDs 4 SMD LEDs waterproof Module house inside aluminum crust with excellent heat dissipation.

·Easy Installation

REXLEDs 4 SMD LEDs waterproof Module can be easily installe with 3M double-sided sticking tape and connectors.

·Extended Life

With little heat, proper drive characteristics and high quality LEDs, REXLEDs 4 SMD LEDs waterproof Module have a life time of more than 50, 000 hours.

·Totally waterproof

With IP68 protection degree, REXLEDs 4 SMD LEDs waterproof Module can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool. The SMD LEDs are totally covered by resin.

·Friendly environment

Pb free. With CE/RoHS/SGS certificate, REXLEDs 4 SMD LEDs waterproof Modules are up to 60% more energy efficient than neon.

·Safe Application

Low voltage DC12V, safety and stable. Free maintenance
