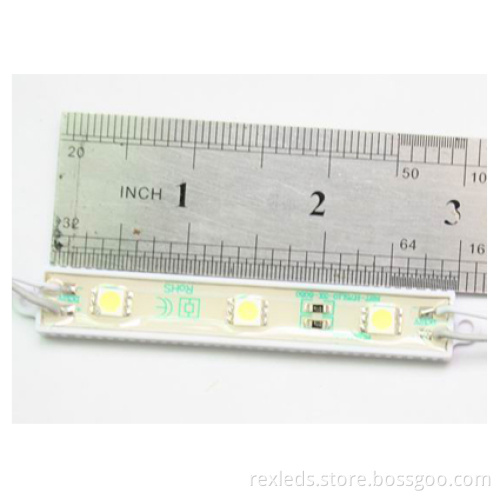

Flexible White 3 Pcs 5050 Smd Led Module, Rex7813 48~60lm Ip68 Led Modules For Channel Letter

Features

1. Comparable visual impact to Neon

2. IP68 rated for outdoor use and completely sealed to be

environmentally robust

3. Small and flexible to fit into small and hard-to-illuminate

spaces Simple, fast and reliable installation

4. Longer useful life - potential to exceed 5 years of useful life

5. Available in 5 colors: Red, green, blue, amber and white

6. Safe operation: 12V DC voltage source and non-flammable

material

7. Reduced energy consumption, actually consumes 40% less

power compare to similar neon system.

8. Operating temperature range of -20Degree to 65Degree

9. One year warranty for Economy version and three years for

Standard Version

Specification

Dimension	78(l)13(W)4(H)mm
LED No	3 pcs 5050 SMD LED Beam angle 150Degree
Voltage	Input DC12V
Current	60mA	60mA	60mA	60mA	60mA
Watts	0.72	0.72	0.72	0.72	0.72
Lumen	48~60	12~18	48~60	12~18	12~18
Color	White	Blue	Green	Yellow	Red
IP	IP68 The PCB be covered by resin.
Net Weight(g)	2.5g/pc.51g/20pcs
Part No	REX7813-3W 5050	REX7813-3B 5050	REX7813-3G 5050	REX7813-3Y 5050	REX7813-3R 5050

Application:

☆ small channel letter

☆ small signage

☆ Mini light box

Item Number: REX7813-3X5050

(X-White/red/blue/green/yellow)

Judged against the performance of standard neon or fluorescent lamps, REXLEDs SMD LEDs Waterproof LED Modules (REX7813-3X5050 Series) are ideal for small signage channel letters’ compacts spaces, which provide significant energy cost reductions(less 40%than neon), easier jobsite installation(splice connector or twist-on wire connector and 3M double-faced sticking tape), free maintenance and more consistent brightness.
