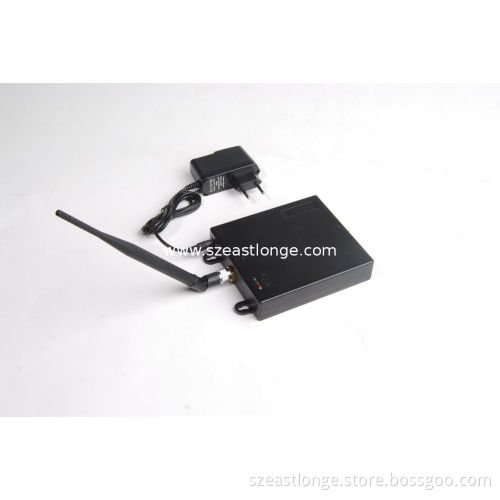

Outdoor Intelligent GSM Signal Booster For Cell Phone GSM900MHZ , High Gain

Boost GSM900MHZ signal

Dimensions: 115*150*30 (mm)

Weight: ≤ 1.5 kg

2. Features and function

● testing the isolation of outdoor and indoor antenna

● Automatic adjustment (AGC) big coverage

● High-speed figure ALC

● output power indication

● automatically be standby without calls.

●automatically shut off of uplink and downlink once self-excitation.

● Clearance noise function of uplink and no interference to base station

● Uplink and downlink gain automatic balance;

●Small size, light weight, beautiful appearance, high gain and low power dissipation.

● Low noise amplifying, improving communication quality and reduction of dropped calls;

●Good aluminum shell shield, greatly improving the anti-interference ability.

● Easy installation and operation

3 Technology index

model	color		frequency
			uplink	downlink
G900-65-10-O	off-white		890-915	935-960
Electrical items			index
max gain			65±3dB
uplink output power			≥10,17dBm
Downlink output power			≥10,17dBm
Noise figure (Max gain)			≤5.0dB
Pass band ripple			≤4.0dB
ALC/AGC (range)			≥30dB
Intermediation attenuation			Output 10dBm≤-50dBc
			Output 17dB≤-45dBc
			Output 20dBm≤-40dBc
			Output 23dBm≤-36dBc
Max input power			≤-25dBm
Spurious Emission is 2.5MHz away from working band edge		9kHz～150kHz	≤-36dBm @1kHz
		150kHz～30MHz	≤-36dBm @10kHz
		30MHz～1GHz	≤-36dBm @100kHz
		1GHz～12.75GHz	≤-36dBm @1MHz
transmission delay			≤1.0μs
Indicator lights			ISO(white and blue light):isolation indicator
			DN (Red):downlink working indicator
			UP (green):uplink working indicator
Working voltage			DC 5.0V
working current			≤1.5A
Power adaptor			AC 100～240V,50/60Hz
Ambient temperature			-5℃～+45℃
relative humidity			≤85%
structural items			index
RF connector			SMA-F
Power port			KLD-40-17
Dimensions			150×115×27mm
weight			≤0.5Kg
