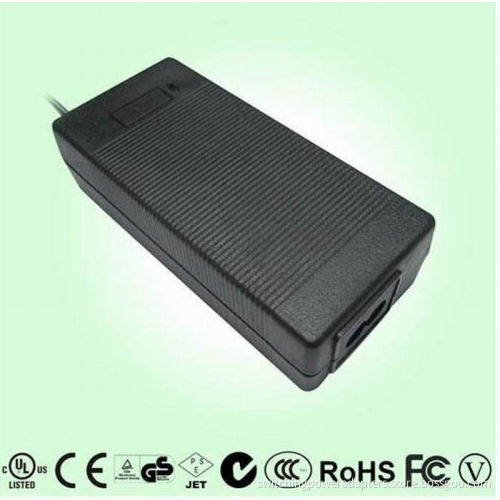

65w Switching Power Adapter,c8 Socket, 10vdc To 24v Dc Output En60950

1. 90-264VAC Input voltage
2. 47-63Hz Frequency range
3. 10VDC to 24VDC Output Voltage
4. 0.1A to 5A Output Current

65W Switching Power Adapter with AC 50 / 60Hz , 10VDC to 24VDC

Product Description

Switching power supply
1) High quality, High efficiency, extra safe design
2) I/P: 100-240VAC 50/60Hz, O/P: 3-24V, 0.1-8A, 1-120W
3) RoHS, REACH, PAHs compliant
4) UL, GS, CE, C-TICK, PSE, FCC approved
5) Energy efficiency: CEC V, EUP 2011, MEPS V


Switching power supply 65W series Specification

1) Rated Input: 100-240V AC, 50/60Hz
2) Operating range: 90-264V AC, 47-63Hz
3) Output voltage: Available from 10VDC to 24VDC
4) Output current: Available from 0.1A to 5A
5) Output power: 65W max
6) RoHS, PAHs, REACH, WEEE compliant
7) 6P, NP available
8) Energy efficiency: V (CEC, EUP, ERP, MEPS)
9) Input current: 1.3A Max 120/240VAC
10) Inrush current: 50A Max 120VAC at max load, 100A Max 240VAC at max load
11) Leakage Current: 0.25mA max
12) Load regulation: ± 5%
13) MTBF: 50K hours at 25'C
14) LED indicator: Optional
15) Size: 132*57*17mm
16) Safety standard: IEC/EN 60950-1, CSA C22.2, UL60950


Safety Approvals

UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/FCC


Protections

1) Short circuit protection
2) Over voltage protection
3) Over current protection


Environmental requirements

1) Operating Temperature: 0-40oC
2) Storage Temperature: -20-80oC
3) Operating Relative humidity: 10-90% RH
