Pushbutton Ticket Dispenser, Touchscreen Kiosk Machines For Queue Management System

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Pushbutton Ticket Dispenser, Touchscreen Kiosk Machines For Queue Management System

Q1 Touchscreen kiosk for queue management system as Pushbutton Ticket Dispenser

Model Number:Q1

Features

Compact design
Very sturdy structure
Magnetic, contact and contactless smart card bybrid card reader
Waterproof infrared touchscreen monitor optional
For professional queue manage system

Introduction

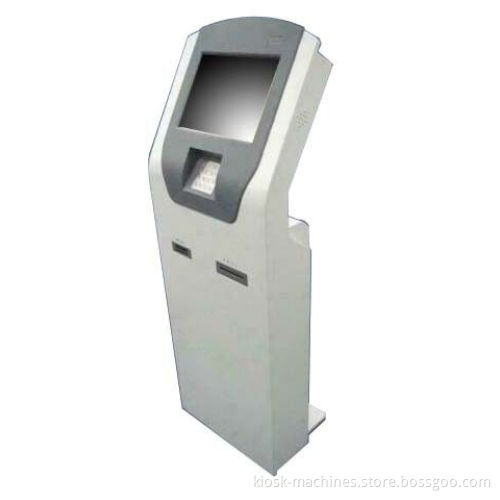

Q1 is a classic touchscreen kiosk for queue management system with 80mm mini thermal printer, PIN pad and bybrid card reader.

Q1 datasheet

Applications

Queue management system, queue kiosk, ticket, internet, coupone, register desk,advertisement,loyalty card verification,hotel login,service

Technical details

Hardware Configurations&Specifications
	Host:	Motherboard: EPIA-M840-12PE CPU: 1.2GHz VIA Nano? E (fanless) RAM:2GB DDRII; Hard Disk: 60G SSD MLC 2GbE RJ45 Net Port,6RS232 Integrated VIA Chrome9 HC3 DX9 3D/2D graphics with MPEG-2 and WMV9 decoding acceleration Integrated 3D sound card 8 USB ports Data Cable; 12V single Power Cable; Newtwork Cable 24/7 sustainable
	Display(Q1A has only button):	Size: 17" TFT LCD Resolution: 1024 x 768 Brightness: 350 cd/m Viewing Angle: 178/178
	Touch Screen(Q1A has only button):	Optical infrared or SAW touch screen Calibration: Once-Only, Four Points With no Drift Touch material: Finger, Gloved Hand or Any Other Pointer Activation force: No Pressure Required for infrared touch Response Time: 8ms
	3DES metal EPP:	Waterproof 16 keys stainless steel metal keypad Keys: laser print or chemical etch keys filled with color ink Super durability: over 2,000,000 times with 0.45mm knock gap Press strength:3N with temperature range -40C~65C CE, RoHS, FCC Interface: RS-232+PS2
	Bank card reader:	Motorized magnetic&IC card readable type,Can confiscate card EMV Ver.4.0 compliant for IC and magnetic card ISO/IEC 7811 JIS X6301/6302 tr1&2&3 read ISO/IEC 7816JIS X6303 R/W; Protocol:T=0,1; EMV handling:EMV4.0 Full insert shutter Interface: USB, RS232C; Power, 12V
	Receipt Thermal Printer:	Themal Printer, Paper width:80mm, Paper roll: 180mm, Thickness:60 to 120g/m2 Print Speed: 220mm/s,resolution: 203 dpi (8 dots/mm) Automatic cutter only;out alarm/to be run out alarm,Jam Data buffer: 16 KB,Flash memory: 384 KB,Graphics memory: 2 logos OMR,Black mark sensor,remote accessible Full Status Monitor Driver Interface: RS232 / USB / Ethernet
	Audio:	Bi-channel amplified output; Multimedia stereo speaker
	Enclosure:	1.5mm all steel anti-graffiti enclosure
	Add-ons	Lightbox,Custom LOGO plate,custom painting, low noise ventilation fans,mechanic locks and keys,power cable, LAN cable, antenna(WIFI&3G/GPRS),fuse,expansion bolt

Software Specifications
	Operating System:	Windows XP, 7, Mac O/S
	Functionalities:	Queue lines Cashless payment Security access control Internet access Advertisement Information Service

Accessories
	Included:	AC Power Cord LAN cable User Manual Drivers CD
	Optional:	External Stereo Speakers External PC

Physical Characteristics
	Weight:	80 Kg
	Size:
	Color:	Gray, Sliver, Yellow, Beige or other color
	Environmental:	0-60 Degrees (c) 0-90% Humidity Power Consumption 200 Watts
