Self-service Touchscreen Queue Kiosk With 80mm Thermal Printer For Payment Service

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Self-Service Touchscreen Queue Kiosk With 80mm Thermal Printer For Payment Service

Q2 Touchscreen kiosk for queue management system

Model Number:Q2

Features

Introduction

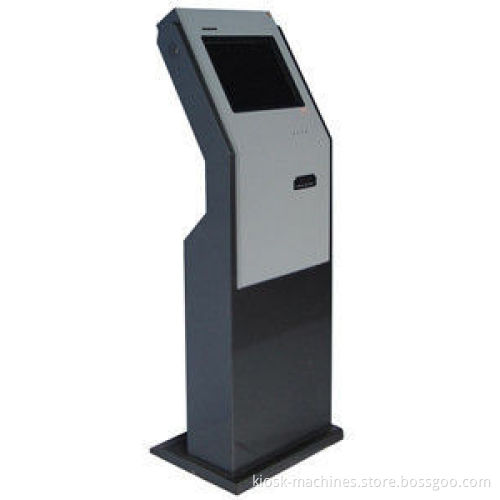

Q2 is a classic touchscreen kiosk for queue management system with 80mm mini thermal printer.

Q2 datasheet

Hardware Configurations&Specifications
	Host:	Motherboard: EPIA-M840-12PE CPU: 1.2GHz VIA Nano? E (fanless) RAM:2GB DDRII; Hard Disk: 60G SSD MLC 2GbE RJ45 Net Port,6RS232 Integrated VIA Chrome9 HC3 DX9 3D/2D graphics with MPEG-2 and WMV9 decoding acceleration Integrated 3D sound card 8 USB ports Data Cable; 12V single Power Cable; Newtwork Cable 24/7 sustainable
	Display:	Size: 17" TFT LCD Resolution: 1024 x 768 Brightness: 350 cd/m Viewing Angle: 178/178
	Touch Screen:	Optical infrared or SAW touch screen Calibration: Once-Only, Four Points With no Drift Touch material: Finger, Gloved Hand or Any Other Pointer Activation force: No Pressure Required for infrared touch Response Time: 8ms
	Receipt Thermal Printer:	Themal Printer, Paper width:80mm, Paper roll: 180mm, Thickness:60 to 120g/m2 Print Speed: 220mm/s,resolution: 203 dpi (8 dots/mm) Automatic cutter only;out alarm/to be run out alarm,Jam Data buffer: 16 KB,Flash memory: 384 KB,Graphics memory: 2 logos OMR,Black mark sensor,remote accessible Full Status Monitor Driver Interface: RS232 / USB / Ethernet
	Audio:	Bi-channel amplified output; Multimedia stereo speaker
	Enclosure:	1.5mm all steel anti-graffiti enclosure
	Add-ons	Lightbox,Custom LOGO plate,custom painting, low noise ventilation fans,mechanic locks and keys,power cable, LAN cable, antenna(WIFI&3G/GPRS),fuse,expansion bolt

Software Specifications
	Operating System:	Windows XP, 7, Mac O/S
	Functionalities:	Queue lines Cashless payment Security access control Internet access Advertisement Information Service

Accessories
	Included:	AC Power Cord LAN cable User Manual Drivers CD
	Optional:	External Stereo Speakers External PC

Physical Characteristics
	Weight:	80 Kg
	Size:
	Color:	Gray, Sliver, Yellow, Beige or other color
	Environmental:	0-60 Degrees (c) 0-90% Humidity Power Consumption 200 Watts
