106 Keys Kiosk Metal Keyboard, Industrial Computer Keyboard Customized

106 Keys Kiosk Metal Keyboard, Industrial Computer Keyboard Customized

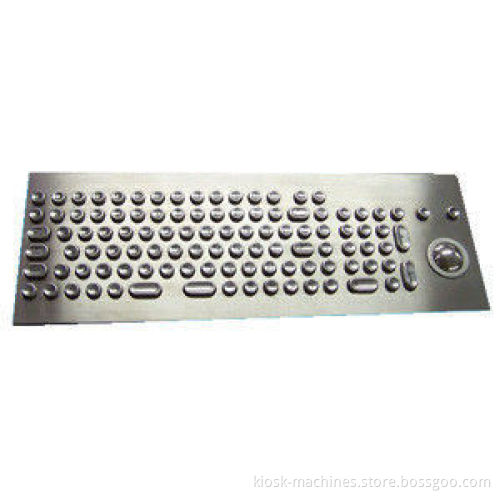

MKTN2356 MKTN2356 IP65 round key-tops full height full function keys pc metal keyboard

Model Number:MKTN2356

Features

Introduction
MKTN2356 is an IP65 round key-tops full height full function keys pc metal keyboard with 17-key numeric keypad and trackball for indoor and outdoor applications.

Applications

medicare,industrial computer,Kiosk,gaming machine,queue machine, control panel, apparatus, CNC machines

MECHANICAL DATA

• Key: 106 keys, #304 super quality polished stainless steel.
• Key top style: round concave keys, with laser engraved and etched legends and raised braille on keys are available.
• Key Size: 14mm diameter for normal keys, 14mm x 28mm for enter key, 14mm x 28mm x 2 for space bar.
• Key travel: 2.00mm.
• Tracker ball: 38mm (1.5) diameter, Resolution 440 edges/revolution.25mm (1.0) diameter metal, 25mm or 38mm Black Phenolic Trackballs are available.
• Switch life: more than 2 million of operations.
• Actuation Force: 2N+/-0.1N for key 14mm x 14mm (pressure point),4N+/-0.1N for key 14mm x 28mm (pressure point).
• Mounting Rack: Aluminum alloy.
• Front Plate: #304 Super quality brushed stainless steel.
• Lettering: Sunk laser legends & characters in high quality ink.
• Actuator/keys materials: stainless steel.
• G.W. 1.20KGs.
• Dimensions: 446.0mm x 155.0mm (faceplate).

ELECTRICAL DATA

• Supply Voltage: +5V DC +/-5%.
• Current Rating: appr. 20mA.
• EMC Standard: It is compliance with the council EMC directive 89/336/EEC,EN55022: 1988+A1:2000+A2:2003,EN55024: 1988+A1:2001+A2:2003.
• Emission EN 50081-1.
• Immunity: EN 50082-1.
• Lifespan > 5 years.
• Contact Material: Carbon / Gold.
• Interface: PS2, RS232, USB available.
• OS: PS2/RS232: Win NT4, 98SE, 98ME, 2000, XP, 7;USB: Win 98SE, 98ME, 2000, XP, 7 and Mac OS9 / OSX.

ENVIRONMENTAL ADAPTABILITY

• Operating temperature:-10°C to +60°C.
• Storage temperature: -20°C to +70°C.
• Operating RH: 30-90% NC.
• Atmospheric pressure: 60-106Kpa.
• Saline mist: 96 hours, IEC 60512-6.
• Damp heat test at + 40C: 21 days, IEC 60512-6.
• Dry heat test at + 85C: 10 days, IEC 60512-6.

RELIABILITY

• RoHS Compliant, CE and FCC.
• Protection Level: IP65.
• Vandal resistant: IK07.
• Key Lifespan >2 million actuations.
• MTBF >40000H.
• MTTR <30min.
