Dc24v 25 Key Led Lighting Controller With Speed And Brightness Adjustment Function

 DC24V 25 Key LED Lighting Controller With Speed And Brightness Adjustment Function

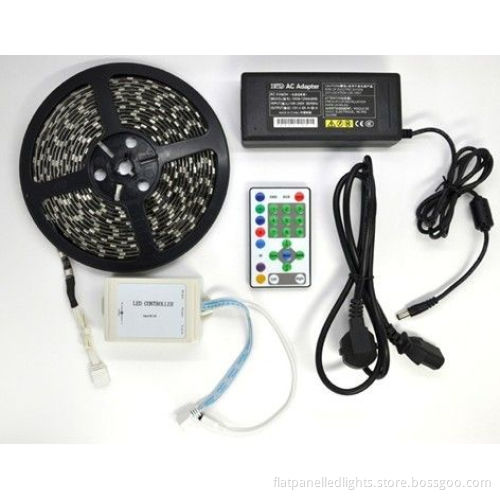

25Keys led light controller Led lighting controller DC24V

25-key infrared controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control. Besides, you also could adjust random color by yourself freely.

 Specification

• Operating temperature: -20-60 °C
• Input Voltage: 12VDC
• Dimension: L94 × W53× H30mm
• Output: 3 channels
• With speed and brightness adjustment function
• Color selection with the specified function, a control lock function
• Connection: Connect the road wire,following the power wire common cathode
• Static power consumption: <1W
• Output current :<2 A(each channel)
• Output power: 12V,216W
• Tune the LED light brightness
• ON/OFF control
• A remote control can handle MORE THAN ONE RGB Lamp

 Application

LED intelligent controller is dedicated to adjust the brightness of LED lights, which adopted the most advanced PWM (Pulse-Width Modulation) digital brightness-adjusting technology at present, users can either operate manually or use the IR wireless remote controller to control the brightness in the distance, they are suitable for commercial and household 86-style socket installation, the socket can be installed outside or inside the wall. LED intelligent dimmer can meet different brightness requirements at different time, and can extend life tenure of LED, suitable for adjusting the brightness of both low-power and hi-power LED illumination lights, energy-saving .
