Rechargeable Heated Jacket Battery 4400mah With 4-temperature Adjustable

Rechargeable Heated Jacket Battery 4400mah With 4-temperature Adjustable

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Model:	LX-DRF01H	Voltage:	7.4v
Capacity:	4400mAh	Cell Type:	Lithium-ion

Rechargeable Heated Jacket Battery 4400mAh with 4-temperature Adjustable

rechargeable 18650 battery for heated clothes, 4-temperature adjustable

1. High quality/ security

2. Safety Well

3. 500 cycles life

4. CE FCC ROHS, MSDS approved

5. One Year guarantee

6. Digital display

Description:

1. Item: heated clothing battery

2. Model: LX-DRF02D

3. Voltage: 7.4v

4. Capacity: 4400mAh

5. Cell type: Lithium-ion

6. Digital display: 4-step temperature control, capacity indication

7. Charge/discharge port: DC3.5*1.35*7mm

8. Size: 92*72*23mm

9. Color: white (black/blue/pink/white/brown, etc. optional)

10. Usage: heated clothing, etc.

11. Certificates: CE, FCC, ROHS

12. Warranty: 1 year

13. Lead time for sample: 2~5 days

14. Lead time for bulk order: 10~20 days.

Operation instruction:

(1) Remaining capacity indication
Without load, press ON/OFF button: 9, 8, 7, 6, 5, 4, 3, 2, 1 to indicate remaining capacity.
(2) 4-level heat output

With load, press ON/OFF button to control heat output level:
4 - Max.
3 - Hi.
2 - Med.
1 - Low

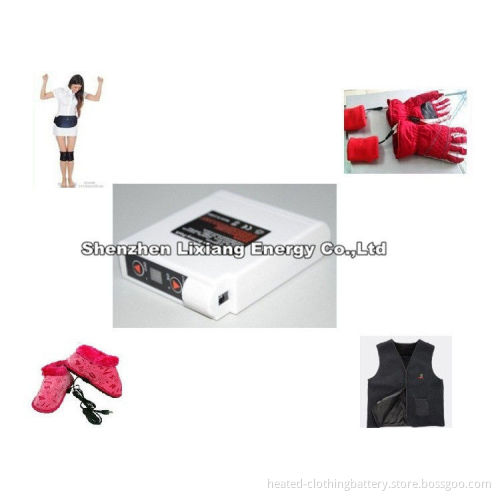

Application:

Power for heated clothing/ heated jackets/ heated vests/ heated underwears/ heated base layers/ heated seat etc.

Package:

Each battery in anti-static bag & white box, then 20pcs/CTN or 40pcs/CTN.

Charger:

Input: AC100v~240v

Output: 8.4v 1.2A

Charging time: around 4 hours

US/ EU/ UK type optional

Certificates: CE, FCC, RHS.

Specification:

Model No.	LX-DRF02D
Nominal Voltage	7.4v
Working Voltage	6V-8.4V
Nominal Capacity	4400mAh
Charge Cut-off Voltage	8.4v
Charge Current	1.2A
Standby Current	≤100μA
Max. Output Power	20W MAX
Operating Efficiency	≥99%
Loading Resistance	5Ω-200Ω
Charge Method	CC/CV Constant Current/Constant
Charge Temperature	0℃—40℃
Discharge Temperature	-20℃～ +60℃
Charge Duration	4-5hrs(Standard)
Cycle Life Time	Above 500 cycles
Internal Impedance	PCB Internal Impedance<80mΩ; Battery Internal Impedance <180mΩ
Digital Display	4-heat settings, capacity indication
Output Terminal	DC3.51.357mm
Usage	heated clothing, heated seat cushions, etc.
Battery Size	927223mm
Weight	230g
Color	White, black, red, pink, blue, brown, etc.
Certificates	CE, FCC, ROHS
Lead Time for Sample	2~5 days
Lead Time for Bulk Order	10~20days

Our Advantage:

1) As we are factory, we can guarantee our price is first-hand, very cheap and competitive with high quality.

2) To make sure provide customer with high quality product & good service, sample can be sent for approval fristly. Before shipment, our QC staff will check quality 1 pc by 1 pc.

3) If you receive defective items, please email us photo of the defectives.

4) Provide OEM service. Our factory can offer OEM service to customer. Please offer us your LOGO & all OEM design information, and we can do special OEM tooling & OEM service for you.

5) After-sale service: all prodcuts are with 1 year warranty.

Certificates

MSDS

Factory Photo

FAQ:

Q: 1. Can I have a sample order?
A: Of course.

Q: 2. What is the lead time?
A: 3~7 days for sample, 7~15 days for bulk order.

Q: 3. Do you have any MOQ limit?
A: No MOQ for existent items, MOQ 1000pcs for modified ones.

Q: 4. How do you ship the goods and how long does it take arrive?
A: For small quantity, generally ship by DHL, EMS, UPS, or FedEx, usually take 4~7 days to arrive. For

large quantity, ship by airplane or ocean, shipping time will depend on destination port.

Q: 5. How to proceed the order if I have logo to print?
A: Firstly MOQ 1000pcs request, then we will prepare artwork for visual confirmation, next we will make a

real sample for second confirmation. If sample is ok, finally we will go to mass production.

Q: 6. Do you offer guarantee for the products?
A: Of course, all our products are with One Year Warranty.
