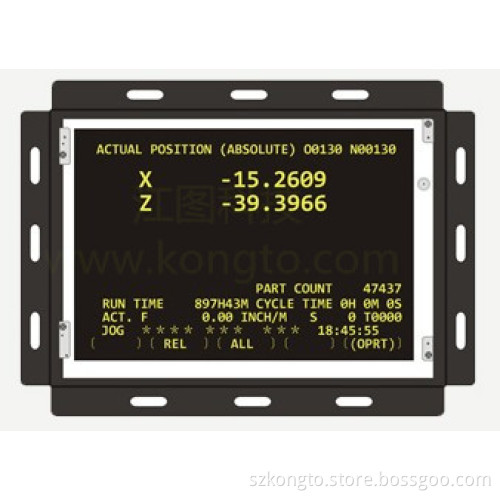

KTV148 RGB EGA CGA MDA Screen

KTV148 RGB EGA CGA MDA Screen

Screen size

246 * 184.4mm (length * width), 12.1 inches, 4:3

Sweep range

H-row scanning: 15Khz ~ 48Khz Plus-n-minus auto-adaptation



V-row scanning: 48hz ~ 75hz Plus-n-minus auto-adaptation

Input signal

Signal source types

MDA, CGA, EGA, VGA

RGB, RGsB, RGBS, RGBHV signals



Synchronization method

HV row filed separation, HV row field mix Cs, green segregation Sog





TTL digital level: 2.4 ~ 5.0V or Low 0.0 ~ 0.8V

Analog model level: 0.7-2.5VP-P



Input resistance

75-500 O high input impedance which can adapts to various signal sources.

Scanning mode

Interlaced scanning / sequential scanning

Signal line

9-pin signal line (optional), 15-pin signal line, BNC input

Screen colors

262K, monochromatic, black-and-white

Contrast

450 : 1

Brightness

400 cd/m2 (Typ.)

Response time

15/30 (Typ.) (Tr / Td) (ms)

Working conditions

Temperature: -10 ~ +65, humidity: 20% ~ 95%

Storage conditions

Temperature: -30 ~ +70, humidity: 10% ~ 95%
