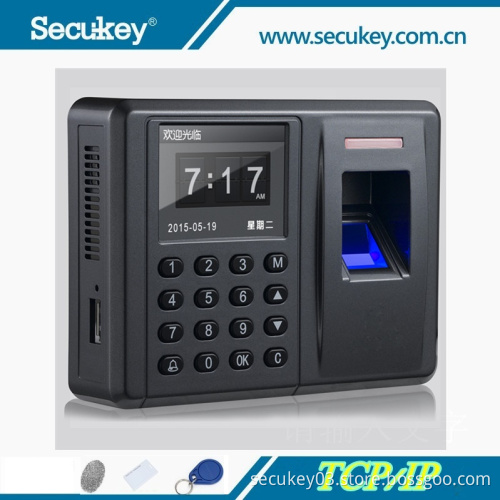

F5 is a standalone fingerprint access control and time attendance, supports TCP/IP communication
Main features:
• Network access control / Time attendance
• 1000 FP users, 1000 card users, 1000 PIN users
• 100,000 event buffers
• Wiegand 26bits input & output
• Connect to PC via TCP/IP or USB
Specifications:
User Capacity: 3000
Fingerprint: 1000
Card : 1000
PIN: 1000
Operation Voltage: +12V
Access Mode: Fingerprint ,Card, PIN, Fingerprint & Card, Fingerprint & PIN
Fingerprint Reader Optical Fingerprint Module
Resolution: 500DPI
Identification time: ＜1S
FAR : ＜0.0001%
FRR : ＜0.01%
Proximity Card Reader: Industry Standard 26 bits
Radio Technology: 125 KHz Industry Proximity EM Card
Read Range: 2~7 cm
PIN Reader: 1~8 digits PIN
Wiring Connections: Relay Output, Exit Button, DOTL, Alarm, Wiegand output,Wiegand Input, Door Bell
Communication: USB. TCP/IP
USB for downloading/uploading
Relay: One (NO, NC, Common)
Adjustable Relay Output Time: 1-99 Seconds (5 seconds default)
Lock Output Load: 2 Amp Maximum
Alarm Output Load : 5 Amp Maximum
Wiegand Interface: Wiegand 26 bits Input & Output
Operating Temperature:-20℃~+50℃
Operating Humidity: 20%RH-90%RH
Dimensions:140mm*105mm*35mm
Unit Weight:300g
Shipping Weight:500g
If any inquiry, welcome to contact Ms. Snowy Lee.{snowy(at)secukey(dot)com(dot)cn}
