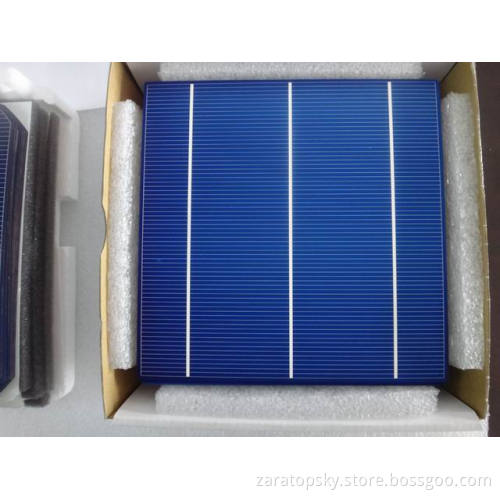

High efficiency but low price poly solar cell for solar panel

Get Latest Price

Incoterm:: FOB

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Delivery Time:: 1 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Productivity:	3000000
Incoterm:	FOB
Certificate:	CE

Product Description

Physical Characteristics
Dimension 156mm×156mm±0.5mm
Thickness Wafer(Si):200±20
Cell: 240m±20m
Front 1.5mm Silver bus bars; Blue/others silicon nitride antireflection coating
Back 3.5mm Silver bus bars; Full-surface aluminum BSF

Electrical Characteristics

Efficiency Code	172	170	168	166	164	162	160
Efficiency Eff(%)	17.20-17.40	17.00-17.20	16.80-17.00	16.60-16.80	16.40-16.60	16.20-16.40	16.00-16.20
Power Ppm(w)	>4.18	4.137-4.186	4.088-4.137	4.040-4.088	3.991-4.040	3.942-3.991	3.894-3.942
Max.Power current Ipm(A)	7.94	7.91	7.82	7.77	7.72	7.67	7.62
Min.Power Current Ipm(A)	7.73	7.68	7.58	7.54	7.49	7.44	7.39
Short Circuit Current Isc(A)	8.515	8.40	8.34	8.30	8.25	8.21	8.15
Max Power Voltage Vpm(V)	0.522	0.520	0.519	0.516	0.513	0.511	0.508
Open Circuit Voltage Voc(V)	0.624	0.622	0.620	0.618	0.616	0.614	0.612

*Date under standard testing conditions(STC): 1,000W/M, AM1.5, 25
*All figures bear±3% of tolerance
*The measurement of cell is calibrated by Fraunhofer ISE.

Typical Temperature Coefficients

Voltage -2.15 Mv /k
Current +4.4Mv/K
