Handheld Fiber Polishing Machine
- Payment Type:
- T/T, Western Union
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 1 Days
- Transportation:
- Ocean, Land, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | 50000 |
| Payment Type: | T/T,Western Union |
| Transportation: | Ocean,Land,Air |
Product Description
Product Description

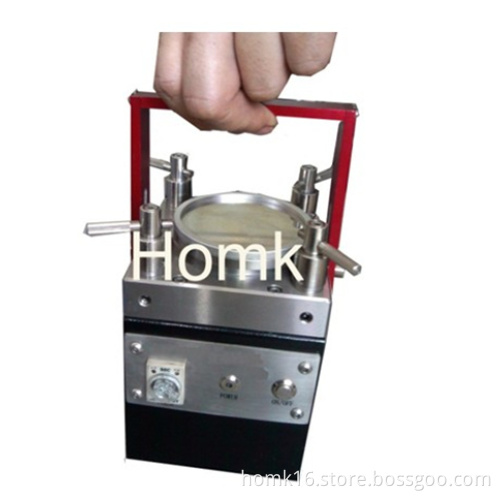

Handheld fiber polishing machine HK-M Features:
1 HK-M Handheld fiber polishing machine is Homk 2012 new machine, it also adopt two Janpan mini motors, inside uses bearing drive work(Inside wheel bead in turn), will not wear out other metal parts.
2 HK-M Handheld fiber polishing machine is suitable for small batch polishing, return polishing. Excellent performance, high efficiency and durable polishing machine
3 Handheld fiber polishing machine is very good mobility, a maximum of 6 polishing head. Polishing cycle is very short, inside all components adopt USA PQP metal hardening technology, Surface hardness up to 80 degrees, it is highly wearable.
4 Operation flexibility is high fast processes (just 30S)each kind of connectors(can processing: FC, SC, ST, LC, MU, MTP. MPO, MT, MTRJ, E2000 ect)with high effect, low insert loss and low return loss. Low repair coefficient. The good interchangeability and repeatability.
5 Handheld fiber polishing machine is very suitable for laboratory and engineering construction application and good stability. HK-M has a strong shell packaging, simple design easy to operate. And
Convenient and safe to carry
Handheld fiber polishing machine Parameter
1. Applicable Connectors: FC, SC, ST, MU, LC, E2000, MPO, MTP, MTRJ UPC or APC and so on,
2. Weight: 2.85Kg
3. Dimensions: 100mm L*120mm W*120mm H
4. Power: 12vDC
5. Polishing Time: 0 - 30 sec. (1 piece timer)
6. Polishing Method: Rotation & revolution
7. Motor speed: 100rpm/rotation
3.3rpm/revolution
8. Power: 15W
9. Polishing capacity: 1-6connectors
10 Voltage: 12VDC
11. Plate size/ Film size: 68mm
Environmental protection, simple design easy to operate.
1 HK-M Handheld fiber polishing machine is Homk 2012 new machine, it also adopt two Janpan mini motors, inside uses bearing drive work(Inside wheel bead in turn), will not wear out other metal parts.
2 HK-M Handheld fiber polishing machine is suitable for small batch polishing, return polishing. Excellent performance, high efficiency and durable polishing machine
3 Handheld fiber polishing machine is very good mobility, a maximum of 6 polishing head. Polishing cycle is very short, inside all components adopt USA PQP metal hardening technology, Surface hardness up to 80 degrees, it is highly wearable.
4 Operation flexibility is high fast processes (just 30S)each kind of connectors(can processing: FC, SC, ST, LC, MU, MTP. MPO, MT, MTRJ, E2000 ect)with high effect, low insert loss and low return loss. Low repair coefficient. The good interchangeability and repeatability.
5 Handheld fiber polishing machine is very suitable for laboratory and engineering construction application and good stability. HK-M has a strong shell packaging, simple design easy to operate. And
Convenient and safe to carry
Handheld fiber polishing machine Parameter
1. Applicable Connectors: FC, SC, ST, MU, LC, E2000, MPO, MTP, MTRJ UPC or APC and so on,
2. Weight: 2.85Kg
3. Dimensions: 100mm L*120mm W*120mm H
4. Power: 12vDC
5. Polishing Time: 0 - 30 sec. (1 piece timer)
6. Polishing Method: Rotation & revolution
7. Motor speed: 100rpm/rotation
3.3rpm/revolution
8. Power: 15W
9. Polishing capacity: 1-6connectors
10 Voltage: 12VDC
11. Plate size/ Film size: 68mm
Environmental protection, simple design easy to operate.
| Pressure way | 4 coil spring | Insert Loss |
0.3 dB (SM) 0.2 dB (MM) |
| Polishing capacity(max) | SC, FC, ST, LC: 6 units | Return Loss |
50 dB (PC) 60 dB (APC) |
| Polishing connector type | FC, SC, ST, LC, MU, MTP, MPO, MTRJ and so on | Radius | 10~25mm |
| Motor speeed | 100rpm rotation, 3.3rpm revolution | Offset | 50 μ M |
| Dimension | 120*130*180mm | Under cut | 50nm |
| Film size | 68mm | Repeatability | 0.1dB |
| Weight | 2.85kgs | Interchangeability | 0.2 dB |
| Input voltage | 12vDC | Working Situation Temperature | -10- +40º C |
| polishing cycle | 30-60s | Heavy punch | 500g or 250g |
| Polishing chassis diameter | 80mm | ||
| Polishing time setting | 0-60s | ||
| Counterweight pressure | 2.1~3.6kgf/cm | ||
| Time Range | 0-60S | ||
| Polishing Time | 2 min. (quick assembly type) | ||
| 3-4 min. (standard connectors) | |||
| Pressure Range | 0~3kg | ||
| Precession Speed | 1rpm |
