Fiber Curing Oven
- Payment Type:
- T/T, Western Union
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 1 Days
- Transportation:
- Ocean, Land, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | 50000 |
| Payment Type: | T/T,Western Union |
| Certificate: | CE |
| Transportation: | Ocean,Land,Air |
Product Description
Product Description

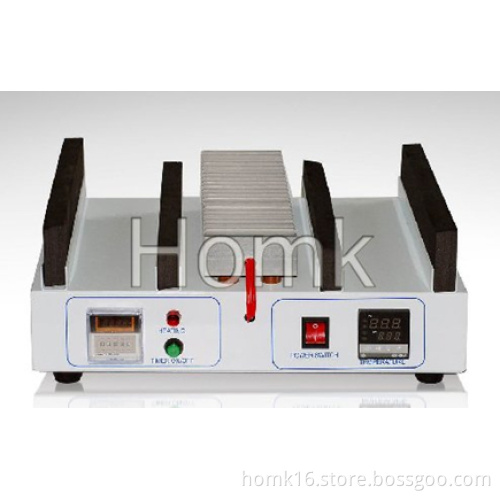

Fiber curing oven
1. This fiber curing oven uses Liquid Crystal Display (LCD) to be clear, the contact surface is friendly.
2. The fiber curing oven is suits in fiber connector manufacturer, fiber curing oven uses in curing epoxy of fiber connector& ferrule
Such as FC, SC, LC, MU, MT, ST, E2000, MPO, MTRJ etc.
3. The fiber curing oven can inserts core 80 ceramic ferrule, may also curing oven 40PCS of the integral-type connector.
4. The fiber curing oven temperature and the time establishes freely, the temperature control precision is high, Precise control system, adjustable temperature 0~300degree, temperature control accuracy to +- 1 degree only. And this fiber curing oven control the heating time by designation. The fiber curing oven easy to use and dependable.
5. Curing tooling can be replace, simple operation, this fiber curing oven suitable for curing epoxy resin of various joints, improve production efficiency.
6. According to customer needs, the fiber curing oven customized with different core number and size of the curing tooling heating.
1. This fiber curing oven uses Liquid Crystal Display (LCD) to be clear, the contact surface is friendly.
2. The fiber curing oven is suits in fiber connector manufacturer, fiber curing oven uses in curing epoxy of fiber connector& ferrule
Such as FC, SC, LC, MU, MT, ST, E2000, MPO, MTRJ etc.
3. The fiber curing oven can inserts core 80 ceramic ferrule, may also curing oven 40PCS of the integral-type connector.
4. The fiber curing oven temperature and the time establishes freely, the temperature control precision is high, Precise control system, adjustable temperature 0~300degree, temperature control accuracy to +- 1 degree only. And this fiber curing oven control the heating time by designation. The fiber curing oven easy to use and dependable.
5. Curing tooling can be replace, simple operation, this fiber curing oven suitable for curing epoxy resin of various joints, improve production efficiency.
6. According to customer needs, the fiber curing oven customized with different core number and size of the curing tooling heating.
| 1 | Technical parameters | Specification |
| 2 | Heating Temperature | 40-200degrees |
| 3 | Dimensions | 400*320*160mm |
| 4 | Weight | 7.0kgs |
| 5 | Input Voltage | 100-120VAC/200-240VAC |
| 6 | Power Consumption | 800W |
| 7 | Automatic | Yes |
| 8 | Making Method of Parison | PLD |
| 9 | Type | Full-Electric Controlled |
| 10 | Warm up Time(Apporox) | About 15min |
| 11 | Type of production | 1.25mm, 2.5mm, SC/FC/ST/LC/MPO/MTRJ all kinds of connectors |
| 12 | Capacity | 40-80connectors |
| 13 | Material | Stainless Steel |
| 14 | Outer Case | Baking Paint for Metal |
| 15 | Style | Horizontal |
