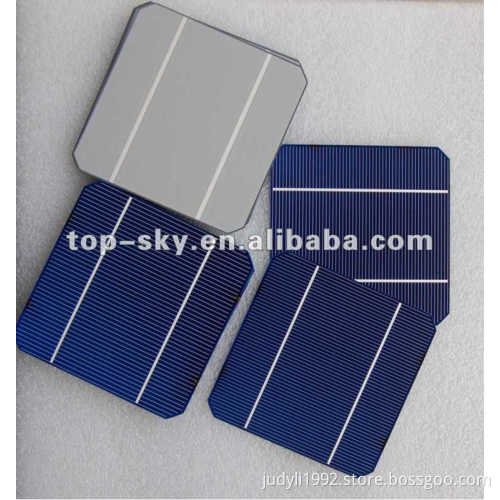

High Efficiency PV Silicon Mono Solar Cells, calculator solar cell
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
1.Dimension 156mm* 156mm+0.5mm/-0.5mm
2.Thickness Wafer(Si): 180μ M - 20μ M /+30 μ M 200μ M+ 20μ M /-20 μ M
3.Cell: 240+40mm/-40mm
4.Front: 1.5mm Silver bus bars; Blue/others silicon nitride antireflection coating
5.Back: 3.0mm Silver/aluminum bus bars; Full-surface aluminum BSF
| Efficiency Code | 1920 | 1900 | 1880 | 1860 | 1840 | 1820 | 1800 |
| Efficiency Eff(%) | >19.10 | 18.90~19.10 | 18.70~18.90 | 18.50~18.70 | 18.30~18.50 | 18.10~18.30 | 17.90~18.10 |
| Power Ppm(w) | >4.648 | 4.600-4.648 | 4.551-4.600 | 4.502-4.551 | 4.453-4.502 | 4.405-4.453 | 4.356-4.405 |
| Max.Power current Ipm(A) | >8.391 | 8.391 | 8.379 | 8.351 | 8.338 | 8.324 | 8.310 |
| Short Circuit Current Isc(A) | >9.205 | 9.205 | 9.133 | 9.074 | 9.001 | 8.940 | 8.878 |
| Max Power Voltage Vpm(V) | >0.551 | 0.551 | 0.546 | 0.542 | 0.537 | 0.532 | 0.527 |
| Open Circuit Voltage Voc(V) | >0.631 | 0.631 | 0.630 | 0.629 | 0.628 | 0.628 | 0.627 |
