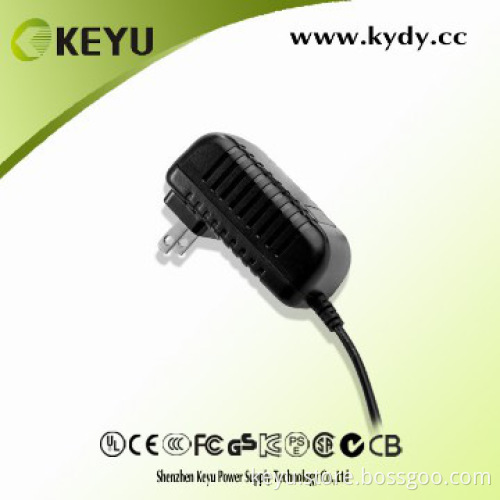

AC110V-240V to DC 6V 2A 12W AC DC switching power supply

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Black	White
Warranty	1year
Certificates	CE GS KC PSE CB 3C
Service	OEM&ODM
Usage	Electronic product, Game Player, Laptop, Linear, Mobile Phone, Other, Power, Switching
Zone Of Application	China
Connect Type	Plug In
Output Type	DC

Detail Description

12v 1a 12W power adapter AC/DC Wall mount switching power supply

Parameters :

Input Voltage:100~240Vac(Range:90~264Vac)
Input Current:0.5A max
Frequency:50/60Hz(Frequency range:47~63Hz)
Output voltage:5.0-24V
Output current:0-2A
Ripple & Noise:150mV max
Power consumption at no load:0.3W max
Conversion efficiency:>70%
Voltage regulation/Load regulation:±5%
Hi-pot test:3000 VAC/1min/5mA
Leakege current:0.25mA max.@240 VAC
With Over-current,Over-voltage,Over-temperature, Short-circuit protection function
Operating temperature:0~40°C
Safety standard:UL/EN60950/GB4943
EMC standards:EN55022 class B/FCC Part 15 class B;EN55024/A1:2001/EN61000

Products Series :

MODEL NO	Input Voltage (Vac)	Input Frequency (Hz)	Output voltage (Vdc)	Output Current (A)	Certificate
KA01-030YYYYU/S	100-240	50/60	3.00	0-1200	CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-040YYYYU/S	100-240	50/60	4.00	0-1200	CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-050YYYYU/S	100-240	50/60	5.00	0-1200	CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-055YYYYU/S	100-240	50/60	5.00	0-1000	CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-060YYYYU/S	100-240	50/60	6.00	0-1000	CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-070YYYYU/S	100-240	50/60	7.00	0-0850	CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-080YYYYU/S	100-240	50/60	8.00	0-0750	CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-085YYYYU/S	100-240	50/60	8.00	0-0750	CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-090YYYYU/S	100-240	50/60	9.00	0-0650	CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-100YYYYU/S	100-240	50/60	10.00	0-0600	CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-110YYYYU/S	100-240	50/60	11.00	0-0500	CE,UL,FCC,GS,PSE,KC,CB,CCC
KA01-120YYYYU/S	100-240	50/60	12.00	0-0500	CE,UL,FCC,GS,PSE,KC,CB,CCC

Type designation KA01-XXXYYYYYU,KA01-XXXYYYYYS series(\"XXX\" 030-120 digits representing the output voltage 3Vdc-12Vdc,\'\"YYYY\" 0000-1200 digits representing the output current0A-1.2A),as U represents the power output with USB port,S represents the power output with DC line port

Applications :

Wireless communication electronics
Network hardware
Persional digital
Audio&Video devices
Medical equipments
Home Appliances

Why US ?

We are the manufacturer ,we are the source
With more than 10 years experience in this field.6000 Square Factory
Provide authorized certification
Top quality ,factory & Competitive price & promptly delivery
Quality control - 100% inspection before delivery etc
Free samples available (<=5 units)
OEM/ ODM Services are highly welcome
Flexible to meet dynamic requirements

About Us:

As a leading manufacturer of switching power supplies ,we supply AC/DC adapter ,desktop power adapter, wall mount adapter, LED power supply, security power adapter, USB car charger, USB power adapter .

If you are interested in KY`s products, Welcome inquiry for more details!

Additional Information

Payment Terms	L/C, T/T, Money Order
Minimum Order	1000
Lead Time / Delivery Time	20 Day(s)
Sample Available	YES
Delivery Details	20days upon receipt of payment
FOB Port	Hong Kong,Shenzhen
Loading Info	by air or by sea
Packing Info	PE bag+carton box
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
