3mm green diffused led diode
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| diameter | 3mm |
|---|---|
| Type | LED |
| Package Type | Throught Hole |
Detail Description

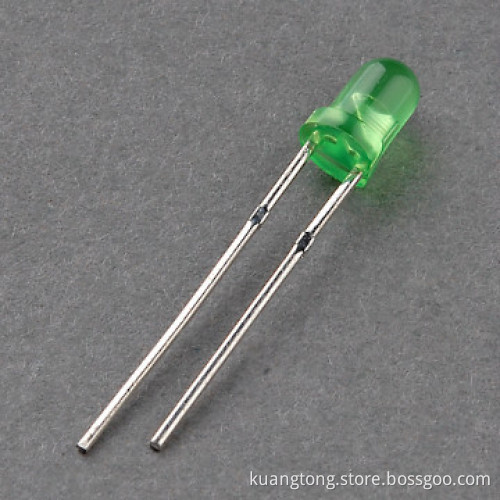

3mm round green diffused led diode specifications:
| Items | Symbol | Condition | Min | Typ | Max | Unit |
| Foward Voltage | VF | IF=20mA | 1.6 | 2.1 | 2.65 | V |
| Reverse Current | IR | VR=5V | --- | --- | 1.1 | uA |
| Dominant wavelength | λD | IF=20mA | 570 | --- | 574 | nm |
| Luminous intensity | IV | IF=20mA | 54 | 82 | 98 | mcd |
| 50% Power Viewing Angle | 2θ½ | IF=20mA | --- | 35 | --- | deg |
Applications:
1.Audio equipment or Instrument panels
2.General use for digital indicators
3.Multimedia product
4.Digital read out display.
We provide a full range of 3mm, 4.8mm and 5mm led diode for ur choice, for more info, big welcome to contact us!
Additional Information
| Payment Terms | L/C, T/T, Paypal, Others |
|---|---|
| Minimum Order | 1000PCS |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | lead time:7-10working days according to your quantity |
| FOB Port | Shenzhen |
| Loading Info | EXWAir transportationSes transportation |
| Packing Info | 1000pcs per bag, around 0.30kg. |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Mainland China, Middle East, North America, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
