2*3*4 rectangular type led diode
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| lens shape | retangular |
|---|---|
| Type | LED |
| Package Type | Throught Hole |
Detail Description
2*3*4 Square led diode diffused specifications:
| Items | Symbol | Condition | Min | Typ | Max | Unit |
| Foward Voltage | VF | IF=20mA | 1.4 | 1.8 | 2.5 | V |
| Reverse Current | IR | VR=5V | --- | --- | 1.1 | uA |
| Dominant wavelength | λD | IF=20mA | 620 | --- | 630 | nm |
| Luminous intensity | IV | IF=20mA | 82 | 100 | 113 | mcd |
| 50% Power Viewing Angle | 2θ½ | IF=20mA | --- | --- | --- | deg |
Applications:
optical indicator,daylight lamp,torch,decorative and entertainment lighting,backlighting,automotive and telecommunication,household appliances

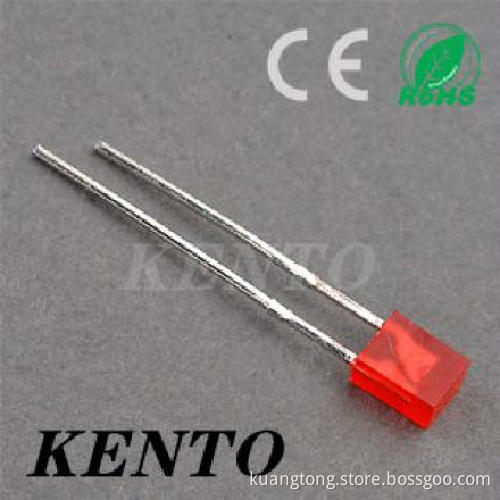

Product view:
Company Profile:
Part of KENTO\'s fame:
We provide wide range of colors led diode with good quality for ur choice, for more info, big welcome to contact us!
Additional Information
| Payment Terms | L/C, T/T, Paypal, Others |
|---|---|
| Minimum Order | 1000pcs |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | 5-10working days according to your quantity |
| FOB Port | Shenzhen |
| Loading Info | EXPRESSAir transportationSea transportation |
| Packing Info | 0.25kg/bag,1000pcs/bag, anti-static bag |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
