5mm long feet diffused lens oval led diode for led display
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| lens | green diffused |
|---|---|
| Type | LED |
| Package Type | Throught Hole |
Detail Description

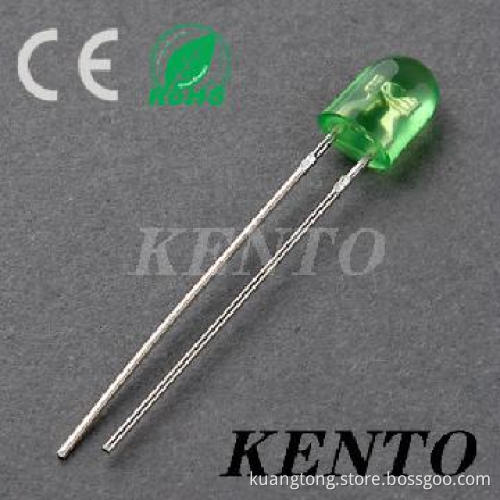

Ø 5mm Oval Type (5.0*4.1*7.1mm) LED Lamps
Ø Ultra brightness.
Ø Choice of various viewing angles.
Ø Diffused, Transparent and Water clear lens are available.
Ø IC compatible /Low current capability.
Ø RoHs Compliance
Product view: more colors for your choice!
Product specification
Part No |
Color |
Wave length |
(V) typ |
(V) Max |
Bright (mcd) |
Deg |
|
Super Red |
660 |
1.85 |
2.2 |
500 |
60/30 |
Hi Red |
660 |
1.85 |
2.2 |
200 |
60/30 |
|
|
Ultra Red |
660 |
1.95 |
2.2 |
700 |
60/30 |
Ultra Orange |
630 |
2.1 |
2.5 |
850 |
60/30 |
|
|
Ultra Yellow |
590 |
2.1 |
2.5 |
850 |
60/30 |
Ultra Green |
574 |
2.2 |
2.5 |
1500-2500 |
60/30 |
|
Ultra Pure Green |
525 |
3.8 |
4.5 |
2000 |
60/30 |
|
|
Ultra Bluish Green |
505 |
3.8 |
4.5 |
1700 |
60/30 |
Ultra Blue |
470 |
2.7 |
4.2 |
1800 |
60/30 |
|
|
Blue |
430 |
3.8 |
4.5 |
1000 |
60/30 |
|
UV |
405 |
3.8 |
4.5 |
100 |
60/30 |
|
Ultra White |
/ |
2.7 |
4.2 |
2500 |
60/30 |
Packing specification:
1000 pieces in a antistatic bag, 0.25KG around
- Application:
* Traffic Lights
* Backlighting
* Automotive Lighting
* Indoor and Outdoor Full Color Displays
* Emergency Lighting
* Illumination application
* Road Lighting
* Holiday Lighting
Company Profile:
Part of KENTO\'s fame:
Our company is following the business philosophy of \"Strive for survival on the basis of quality,strive for development on the basis of technology \'with market as orientation,with service as principle.
If you need any led,please do not hesitate to contact us.It is our pleasure to give you the best service ,competitive price,high quality led with the fastest speed.
Additional Information
| Payment Terms | L/C, T/T, Paypal, Others |
|---|---|
| Minimum Order | 1000PCS |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | lead time:5-10working daysaccording to your quantity |
| FOB Port | Shenzhen |
| Loading Info | EXPRESSAir transportationSea tranportation |
| Packing Info | 0.25kg/bag,1000pcs/bag,anti-static bag |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
