Double Shine 36W LED Tube Light

Products Information

1.Description:

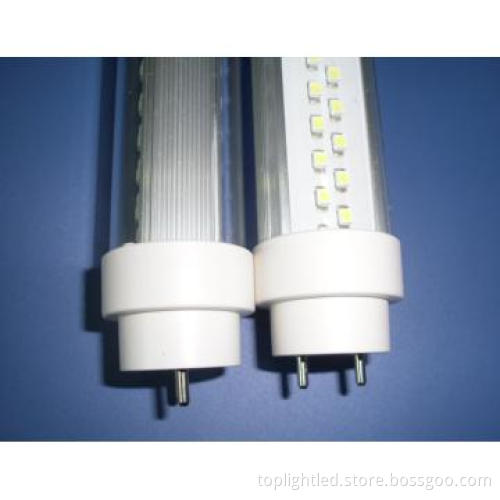

1212mmDouble Sides Shine T10 LED Tube Light, or be called 1212mm Double Sides Shine T10LED fluorescent lamp. The tube’s special design with 2sides shine, can adjust the fixed angle, built-in power supply, double brightness. Energy saving and economical. It can be replaced 56W conventional fluorescent lamp.

2.Advantage:
Double sides shine T10 LED tube light
2 sides brightness
Epistar LED chip
Stable quality
Long history
Good looking
3years warranty
Good heat dissipation
Low brightness decay
Over 50,000hours lifespan
CE,ROHS,FCC,PSE listed

3.Features:
Power: 36W
Luminous Flux: 3200-3400lm
Light source: SMD3528/LED 552pcs
Material: AL+PC
Energy saving: over 65%
Easy installation
Fast turn on or off
No noisy
No Flickering
No RF interference
Environmental protection

(1) electricalparameter:

Tube Length (mm)	Model No.	LED Quantity (pcs)	Luminous Flux (lm)	Luminous Intensity (lux)
1212mm	TP-T10SMD432DS-24W	432pcs	2300-2408lm	201/2M
1212mm	TP-T10SMD552DS-36W	552pcs	3200-3400lm	245/2M


(2) basic parameter:

Power	24W, 36W
LED Quantity	3528 LED/432pcs, 552pcs
Input voltage	100-277VAC
Beam Angle	180degree
Power Factor	>0.85
Power Efficiency	>92%
Material	AL+PC



(3) PC and color temperature:

Color Temperature	Warm White(2500-3500K)
Natural White(4000-5000K)
Cool White(5500-7000K)
Tube PC	Clear PC
Frosted PC



5.Aging:
1212mmdouble sides shine T10 LED Tube Light\'s aging time is over 72hours, the LED tube lights\' efficiency will improve better in the aging, and contribute to the efficiency of late use stability. LED in product quality control aging test is a very important link.


6.Package detail:

Tube Length	Model No.	Net Weight	Packing Size	Carton Quantity
1212mm	TP-T10SMD432DS-24W	0.58kg	1350*250*250mm	25pcs/CTN
1212mm	TP-T10SMD552DS-36W	0.63kg	1350*250*250mm	25pcs/CTN



7.Installation:
1212mmdouble sides shine T10 LED Tube Lightcould be installed on the T8 or T10 bracket directly, pls take down the starter before installing.
Kindly Notice: before installing, please make sure the power source is off!


8.Application:
Indoor usage, such as below:
Room
Office
Hotel
School
Factory
Hospital
Building
Workshop
Coffee shop
Warehouse
Supermarket
Gymnasium
