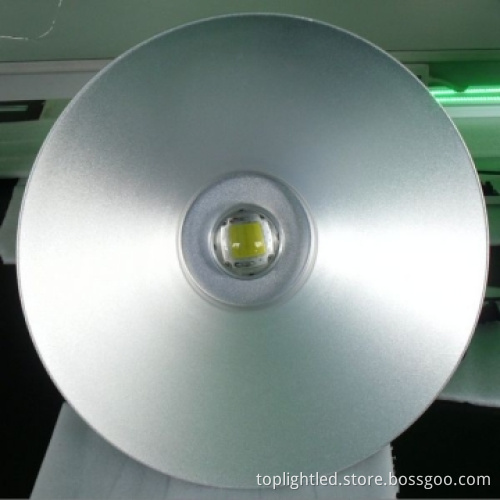

80W LED High Bay Light High Brightness

Features:

1.Brighter luminous intensity, further irradiation distance.

2.High Input Voltage low Output Current.  Anti-seismic conflict .

3.Unique radiator design keep it low power dissipation & long endurance.

4.High quality, low temperature rise and low light decline

5.Other Colors are available per request.

6.Energy-saving and environmental protection

Our advantage:

1),Good quality and competitive price.

2),Supply OEM.

3),Professional and speedy service.

Application:

Factory Workshop, Warehouse, UTR Station, petrol station, Commercial Building, Palaestra like Indoor badminton hall, table tennis hall, car repair garage, car beauty and decorating shop , container freight station, construction site  etc. which need high aluminum and big area etc.

Color Temperature: WW/2,700-3,900K;NW/3,900-6,000K;CW/6,000-7,000K

Color Rendering Index: WW/Ramore than 68; NW/Ramore than 75; CW/Ra more than 75

Light Distribution: symmetry / light spot (round)

Light Design: LED+reflector secondly light distribution

Juction Temperature: less than 80°C

Operation Temperature: -40°C~+55°C

Storage Temperature: -25°C-+55°C (25°C is best-fit)

IP Rating: IP65

Working Life Span: 50,000Hours

Power Line: 0.75mm2 three-core cable

Connect Wire: Brown/L; Blue/N; Yellow, Green/G

Housing Color of Lamp Head: Black/ Silver (optional)

Key Features & Benefit of High Bay:

●LED high bay designed as a high quality product

● Enhanced passive cooling system allows for reduced junction temperatures, extending the life of the lamp

● Reduces energy consumption up to 70%

● No warm-up time, instant-on with full light output and stable color

●Environmentally Friendly – No mercury, No UV or IR radiation, No lead & RoHS Compliant

●Maintenance free - Long life operation

●Die casting aluminum ballast casing with powder coated finish for corrosion-resistance

●Two options for hoods: aluminum and high temperature-resistant polycarbonate (PC).

●Three options for lens: UV stabilized tempered glass, UV stabilized acrylic and polycarbonate (PC).

●Available for VE 120/160W donut-shaped induction lamps, traits are high lighting efficacy, long lifetime, high CRI, better lighting, constant wattage, etc.
