IP65 20W Bridgelux Outdoor Flood light led motion sensor light

 IP65 20W Bridgelux Outdoor Flood light led motion sensor light

1) Light Source:   1*20W LED

2) Luminous Flux:  1800LMLM  BridgeLux 45mil LED Chip

3) Rated Wattage:22W

4) Base:2PINS

5) Rated Voltage:    85-265VAC, 50/60Hz

6) Color Temperature:  WW(2700~3800K), NW(4000-5000K) or CW(5500-6700K)
7) Beam Angle:    150°

8) Lifetime: 50,000Hours

9) Size  :   179*133*57mm

10) Net weight:   700g

11) CE .ROHS approved

12) Body Temperature:  <70 °C  @Ta=25 °C

13)led flood light 20w Recommended Replaced bulb:60w Metal Halide Lamp

14)12-24VDC for solar power system is available
15)IP Rating:IP65

Application:

a). Indurstrial high power led lighting

b). Stadium led lighting

c). Outdoor lighting

1. Yard, Square Lighting;

2. Park, Garden Lighting;

3.Building, Billboard Lighting;

4.Gas Station, Garage, Tunnel Lighting;

5. Gymnasium, Sports Stadium Lighting;

6. Workshop, Factory Lighting;

7.Warehouse, Storage Lighting

Latest Design  Outdoor Flood Lights Led 20W

Material  Quality



 1. 20W LED flood light are made of ASA Plastic,High weatherability,permanent use,color stability,widely used in Car Bumper and so on,which reduce costs and environment-protection.

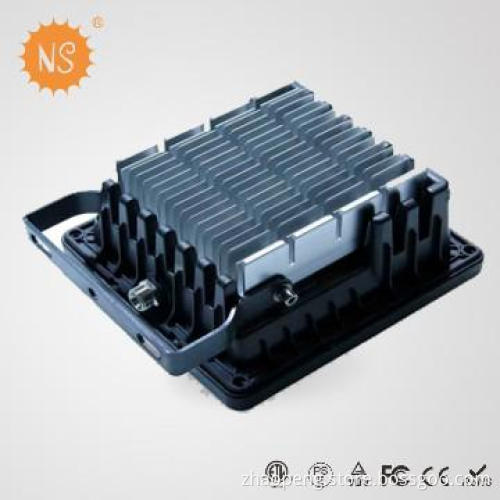

2.6063 Aluminum Alloy,It is adopted for its excellence plasticity,suitable strength of heat disspation,with good weldability and the surface is treated by anticathode oxidation which greatly improves the sheen to the surface of the Aluminum Alloy.

3.Chip:20w Outdoor led flood light Using Integrated and SMD chip(with Bridglux),Which offering more choice for cusomers.

4.Total appearence,It is easy to install LED lighting,efficient for mass productio

Secs:

1) Light Source:   1*20W LED

2) Luminous Flux:  1800LMLM  BridgeLux 45mil LED Chip

3) Rated Wattage:22W

4) Base:2PINS

5) Rated Voltage:    85-265VAC, 50/60Hz

6) Color Temperature:  WW(2700~3800K), NW(4000-5000K) or CW(5500-6700K)
7) Beam Angle:    150°

8) Lifetime: 50,000Hours

9) Size  :   179*133*57mm

10) Net weight:   700g

11) CE 12) Body Temperature:  <70 °C  @Ta=25 °C13)led flood light 20w Recommended Replaced bulb:60w Metal Halide Lamp 14)12-24VDC for solar power system is available
15)IP Rating:IP65

Application:

a). Indurstrial high power led lighting

b). Stadium led lighting

c). Outdoor lighting

1. Yard, Square Lighting;

2. Park, Garden Lighting;

3.Building, Billboard Lighting;

4.Gas Station, Garage, Tunnel Lighting;

5. Gymnasium, Sports Stadium Lighting;

6. Workshop, Factory Lighting;

7.Warehouse, Storage Light
