High Quanlity 54W LED Panel Light
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Luminous flux | 1400lm |
|---|---|
| Protection rating | IP44 |
| Weight | 10500g (lamp),11200g (total) |
| Light Source | LED Lamp |
| Voltage | 220V |
Detail Description

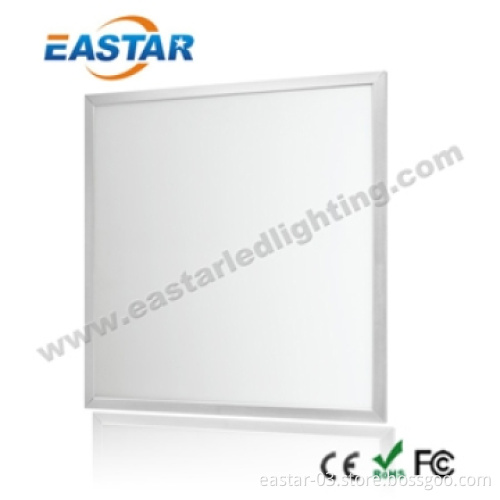

High quanlity 54W LED panel light
Module
ZMP-CS4-6012-GOP54-A1 (natural white)
ZMP-CS4-6012-GOW54-A1 (warm white)
ZMP-CS4-6012-GOC54-A1 (cold white)
| Total power consumption | 63W |
| LED consumption | 54W |
| Input voltage | AC90-250V, 50/60Hz |
| Power supply | external constant current |
| Lighting source | low power 3528 LEDs |
| LED quantity | 864pcs |
| Lighting method | side emitting |
| Main material | aluminum + PMMA + PC |
| Luminous flux | 1400lm |
| Color temperature | 2700-4500K, 4500-6500 K, 6500-9000K |
| Viewing angle | ≤120 ° |
| CRI | Ra﹥70 |
| Working temperature | -20～45℃（-4～104 °F） |
| Environment humidity | <90﹪ |
| Working environment | indoor use (applicable for dry environment) |
| Environment humidity | <90﹪ |
| Protection rating | IP44 |
| Life-span | 50,000 hours |
| Weight | 10500g (lamp),11200g (total) |
| Certification | CE, RoHS and UL pending |
| Installation | suspended,mounted |
| Warranty | 2 years |
| Dimension | 600 mmx1200mmx15mm |
Features:
1 Special circuit design, each group of LEDs can work separately, avoiding any problem of lighting output caused by single faulty LED2 Wide range voltage input
3 No UV or infra-red radiation, no mercury or lead, eco-friendly, no danger of broken glass
4 Low energy consumption, saves 60% power comparing conventional light
Applications:
1.600x1200mm 54W LED light panel can be extensively applied to general lighting, such as mall, store, hotel, office, supermarket, commercial building, station, warehouse, residential, parking lot, home, restaurant, railway, subway station, bank, warehouse, exhibition gallery, library, closet, factory, etc. Replace conventional fluorescent lamp or sodium lamp.The 54W LED light panel Energy efficient and environmentally friendly.
2. Eco-friendly green product
3. Reliable quality
2. Eco-friendly green product
3. Reliable quality
54W LED light panel Installation
54W LED pane llights Electrical Connection
1. Before installation 54W LED panel, check whether the power is suitable. The light must work under the right voltage according to the specification.
2 Check and make sure that the ceiling can hold the weight of the panel light.
3Ensure the wire is OK and do not pull it. If the wire is broken, stop the usage.
2 Check and make sure that the ceiling can hold the weight of the panel light.
3Ensure the wire is OK and do not pull it. If the wire is broken, stop the usage.
54W LED panel Test Report
600*1200mm 54W LED light panel Dimension
54W LED panel lights Iluminance
CASE:
Additional Information
| Payment Terms | L/C, T/T, Others |
|---|---|
| Minimum Order | 50 |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | Air/Sea/Express |
| FOB Port | Shenzhen |
| Loading Info | exquisite carton,FCCD |
| Packing Info | Air/Sea/Express |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
