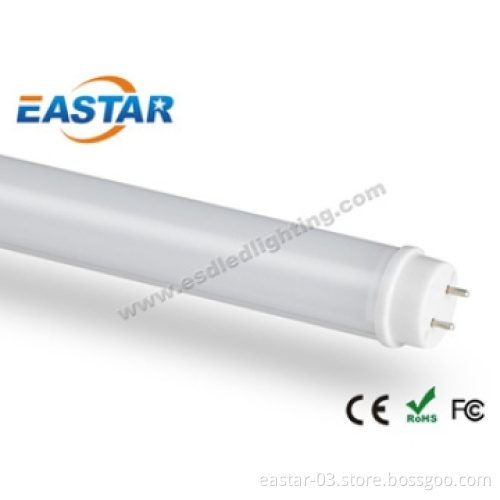

2011 Hot sales 22.5W T8 LED Tube (1500mm)
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Weight | 430g |
|---|---|
| Certification | CE, RoHS and FCC |
| Life | 50,000 hours |
| Package | Yes |
| Color Tones | Warm Color |
| Power | 22.5W |
| Illuminant | LEDs |
| Length | 150cm |
| Light Source Chip | CREE |
| Voltage | 220V |
Detail Description
We are top 20 LED Tube manufacturer in China, professional in LED Tube,T8 LED Tube , T5 Tube ,T10 LED Tube, Providing unique design super quality LED Tube lights. All our Tubes have pass CE RoHS FCC approval.
Module
ZRG-T8-1500-GSP9-A1 (transparent PC cover)
ZRG-T8-1500-GTP9-A1 (stripe PC cover)
ZRG-T8-1500-GDP9-A1 (frosted PC cover)
| Total power | 26W |
| LED consumption | 22.5W |
| Input voltage | AC90-250V, 50/60Hz |
| Power supply | built-in constant current |
| Lighting source | low power 3528/3014/5050 LEDs |
| LED quantity | 360pcs |
| Dimension | Φ26mm*1500mm |
| Material | PC cover frosted |
| Lamp holder | G13 |
| Luminous flux | 2100lm±10% |
| Luminous efficiency | 70–80lm/W |
| Color temperature | 2700-4500K,4500-6000K,6000-9000K |
| Viewing angle | ≤120 ° |
| CRI | Ra﹥70 |
| Working temperature | -20～40℃（-4～104 °F） |
| Environment humidity | <90﹪ |
| Working environment | indoor use |
| Protection rating | IP44 |
| Life-span | 50,000 hours |
| Weight | 430g |
| Certification | CE, RoHS and UL pending |
| Warranty | 2 years |
Features:
1. The 1500mm T8 LED tube lighting has high temperature resistant housing for safety2. Wide range voltage input
3. No UV or IR(infra-red) radiation, no mercury or lead, eco-friendly, no danger of broken glass
Applications:
22.5W 1500mm T8 LED Tube can be extensively applied to general lighting, such as mall, store, hotel, office, supermarket, commercial building, station, bus, warehouse, signage, residential, parking lot, home, restaurant , train, railway, subway station, bank, warehouse, exhibition gallery, library, closet, factory, cabinet, cupboard, kitchen, refrigeration units etc. Replace conventional fluorescent lamp or sodium lamp. Energy efficient, environmentally friendly.
1500mm 22.5W T8 LED TUBE Dimension
LED TUBE Eelectric Connection Diagram
1500 LED T8 tube lighting Installation
1 ) Fitting with starter, inductive (magnetic) 1500 LED T8 fluorescent tube lighting
A.Remove the starter from the fitting
B. Plug the 1500 T8 LED tube 22.5 w into the fitting directly, it would be better to remove both starter and ballast
2) Fitting with electrical ballast
A.Remove the electrical ballast from the fitting
B. Connect the anode & cathode directly
C. Plug the 22.5W 1500mm T8 LED tube into the fitting
1 ) Fitting with starter, inductive (magnetic) 1500 LED T8 fluorescent tube lighting
A.Remove the starter from the fitting
B. Plug the 1500 T8 LED tube 22.5 w into the fitting directly, it would be better to remove both starter and ballast
2) Fitting with electrical ballast
A.Remove the electrical ballast from the fitting
B. Connect the anode & cathode directly
C. Plug the 22.5W 1500mm T8 LED tube into the fitting
22.5W T8 LED TUBE Test Report
1500mm22.5W T8 LED TUBE Dimension
Frosted PC Cover Illuminance
22.5W 1500mm T10 LED TUBE Cases
Additional Information
| Payment Terms | L/C, T/T, Others |
|---|---|
| Minimum Order | 10 |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | Air/Sea/Express |
| FOB Port | Shenzhen |
| Loading Info | Air/Sea/Express |
| Packing Info | Exquisite carton |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
