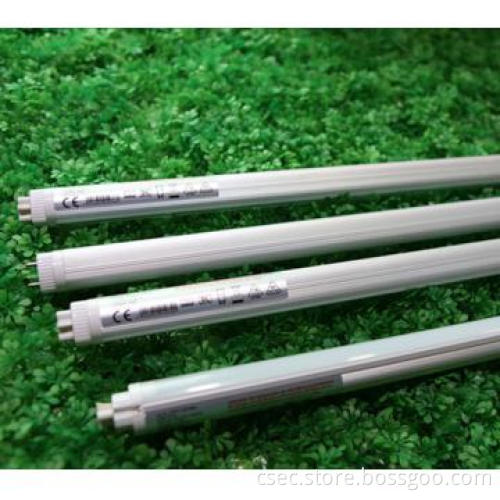

lighting for CE VDE Germany tube T8 1200mm all series
  • lighting for CE VDE Germany tube T8 1200mm all series
  • lighting for CE VDE Germany tube T8 1200mm all series
  • lighting for CE VDE Germany tube T8 1200mm all series
lighting for CE VDE Germany tube T8 1200mm all series
lighting for CE VDE Germany tube T8 1200mm all series
lighting for CE VDE Germany tube T8 1200mm all series

lighting for CE VDE Germany tube T8 1200mm all series

Get Latest Price
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Life 35000
Tube Diameter T8
Power 22W
Lamp Base G13

Detail Description

  • Dimensions: 600mm/900mm/1200mm/1500mm Φ28mm
  • Power: 10W/18W/20W/24W input: 85-265V
  • Luminous flux: 800lm/1400lm/1750lm/2100lm
  • Color: 3000K/4000K/6000K, no flicker no luminous spot
  • Number of LEDs: 100PCS/156PCS/200PCS/240PCS SMD 3014.
  • Color rendering index: 75Ra & life span: 36,000h
  • Material: PC+aluminum6063, with high vibration resistant
  • Product Approvals: VDE, C
  • Model CS-LT8060NA CS-LT8090NA CS-LT8120NA CS-LT8150NA
    LED Qty 100pcs 156pcs 200pcs 240pcs
    Lighting Source 3014SMD 3014SMD 3014SMD 3014SMD
    Input Voltage AC85-265V AC85-265V AC85-265V AC85-265V
    Power Dissipation 12W 17W 22W 25W
    Color Temperature 2700K-6000K 2700K-6000K 2700K-6000K 2700K-6000K
    Color-rendering Index >75 >75 >75 >75
    Luminous Flux 900lm 1400lm 1800lm 2100lm
    Radiant Angle  120° 120° 120° 120°
    Dimension  600mm*Φ28mm 900mm*Φ28mm 1200mm*Φ28mm 1500mm*Φ28mm
    Dimming Function Optional Optional Optional Optional
    Material  PC+Aluminum PC+Aluminum PC+Aluminum PC+Aluminum
    Operating Temperature -20~50℃ -20~50℃ -20~50℃ -20~50℃
    Operating Life 20,000h 20,000h 20,000h

    VDE LED Tube Dimension certificate Power Luminous flux
    Osram chips 600mm*26mm   VDE  12W 850lm
    Osram chips 900mm*26mm   VDE  17W    1320lm
    Osram chips 1200mm*26mm   VDE  22W    1700lm
    Osram chips 1500mm*26mm   VDE  25W    1960lm

Additional Information

Payment Terms T/T, L/C
Minimum Order 1,000
Lead Time / Delivery Time 30 Day(s)
Sample Available YES
Delivery Details After receipt of 30days
FOB Port Shenzhen
Loading Info By sea, air, express
Packing Info Container
Target Market(s) Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
