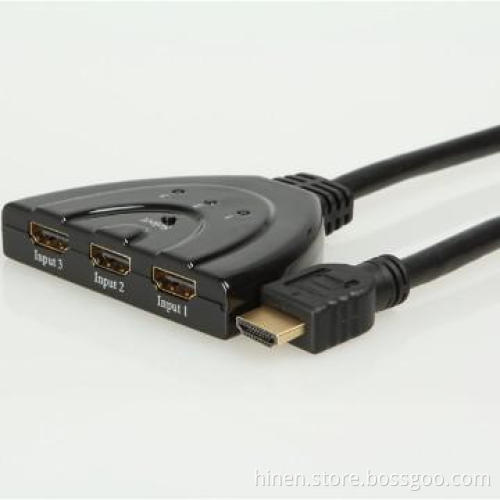

Three channel available HDMI Switcher Bidirectional

FEATURES:

l HDMI bidirectional switch, it can switch one of three sources to one display or switch one source to one of three displays

l Supports highest video resolution 1080p

l Supports 250MHz/2.5Gbps per channel (7.5Gbps all channels) bandwidth

l Supports 12bit per channel (36bit all channels) deep color

l HDCP pass-through

l Supports uncompressed audio such as LPCM

l Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)

l Supports 3D all format, including , , bandwidth up to 250MHz.

SPECIFICATIONS

Signal Inputs/Output

Input DDC Signal

5 volts p-p (TTL)

Maximum Single Link Range

1920X1080p

Output Video

HDMI

Operating Frequency

Vertical FrequencyRange

50/60Hz

Video Amplifier Bandwidth

2.5Gbps/250MHz

Resolutions(HDTV)

Interlaced(50&60Hz)

480i,576i,1080i

Progressive(50&60Hz)

480p,576p,720p,1080p

Warranty

Limited Warranty

1 Year Parts and Labor

Environmental

Operating Temperature

0 ℃ to +70℃

Operating Humidity

10% to 85 % RH (no condensation)

Storage Temperature

-10℃ to +80℃

Storage Humidity

5% to 90 % RH (no condensation)

Power Requirement

External Power Supply

No power needed

Power consumption (Max)

Regulatory Approvals

Converter Unit

FCC,CE,UL

Accessories Adapter

User Manual

Connection and Operation
You can connect the HDMI sources to the three HDMI female ports and connect the HDMI display to the HDMI male port. Then, press the “Select” button to select one input source from three.

You can also connect the HDMI Displays to the three HDMI female ports and connect the HDMI sources to the HDMI male port. Then, press the “select” button to select one HDMI display from three.

Additional Information

Payment Terms	T/T
Minimum Order	100
Lead Time / Delivery Time	20 Day(s)
Sample Available	YES
Delivery Details	EX-WORK, FOB SZ, FOB HK
FOB Port	Hong Kong,Shenzhen
Loading Info	Seafreight, airfreight. Express shipment
Packing Info	KMK Carton with standard size: 50x32x21cm
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
