converter(VGA+Stereo to HDMI)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

converter	VGA+Stereo to HDMI
resolution	1080p
Weight	44g
Output Voltage	2A
Output Power	Others(W)
Type	DC/AC Inverters
Output Type	Single

Detail Description

1.0 Introduction

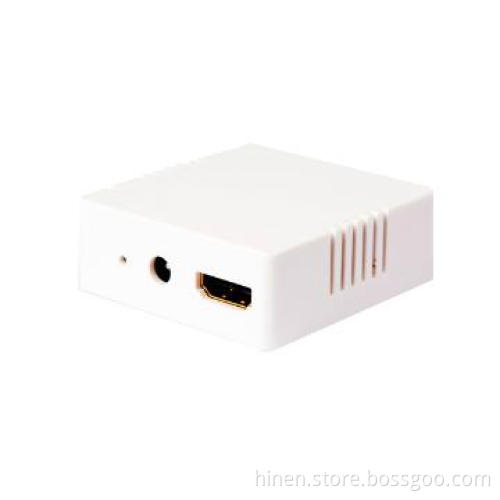

This kind of the Converter is a VGA video converter. It converts VGA input into HDMI and allows users to enjoy their larger and high-definition image on TV. The conversion is along with the stereo audio.

1.1 FEATURES

This VGA converter has many features that enable it to perform in a superior manner. Among those features you will find:

Easy to Use: Install in seconds, no need of setting.
Conversion: It could convert PC’s VGA video and Stereo audio into complete HDMI.
The VGA input supports all VGA resolution.
HDMI output supports 720p and 1080p resolution (Users can change the resolution by switching the built-in button of the product).
Support HDMI 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth.
Supports HDMI 8bit per channel (24bit all channel) deep color.

2.0 SPECIFICATIONS

Signal Inputs/Output
Input Signal	VGA, Stereo
Output Video signal	HDMI 720p/1080p
VGA Resolution	640x480 60/72/75/85Hz 800x600 60/72/75/85Hz 1024x768 60/70/75/85Hz 1280x720 60Hz 1280x768 60/70/75/85Hz 1280x800 60/70/75Hz 1280x960 60Hz 1280x1024 60Hz 1440x900 60/75/85Hz 1920x1080 60Hz 1920x1200 60Hz 1920x1440 60Hz Note: It’s possible that several resolutions are limited on a few displays
Operating Frequency
Vertical Frequency Range	50/60Hz
Video Amplifier Bandwidth	1.65Gpbs/165MHz
Mechanical
Size(W-H-D)	60X56X21MM
Weight(Net)	44g
Warranty
Limited Warranty	1 Year
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 95 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@2A
Power consumption (Max)	2W
Regulatory Approvals
Converter Unit	FCC,CE,
Power Supply	CE,FCC
Accessories Adapter
AC Power Adapter	US standard, UK standard and so on
User Manual

Note: Specifications are subject to change without notice.

3.0 Package Contents

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

Main unit.
5V/2A DC Power Supply
User\'s Manual

Additional Information

Payment Terms	T/T
Minimum Order	1000
Lead Time / Delivery Time	30 Day(s)
Sample Available	YES
FOB Port	Shenzhen
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
